LPP-100-27

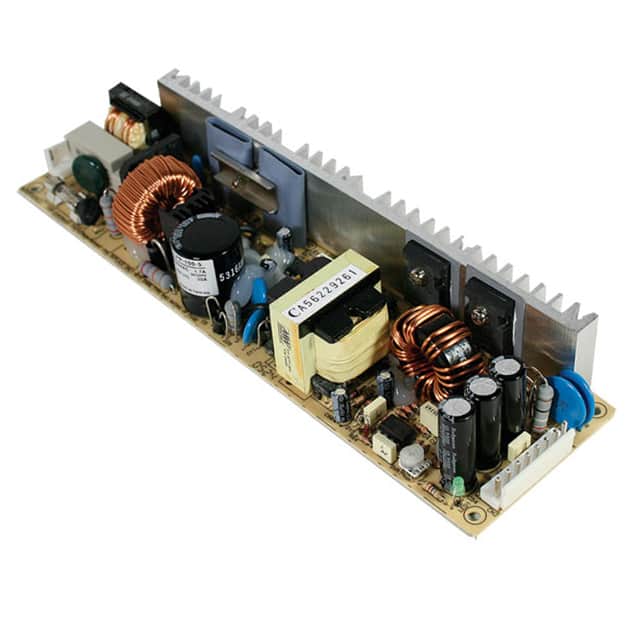

The Mean Well USA LPP-100-27 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a 27VDC output at up to 3.8A, providing a total power of 103W. This unit features universal AC input (85-264VAC) with a full range capability and includes a built-in active Power Factor Correction (PFC) function for improved efficiency.

With a typical efficiency of 83%, the LPP-100-27 offers reliable performance within an operating temperature range of -10°C to 60°C (with derating). It includes essential protections such as overload (105-150% rated output power) and over-voltage protection. The converter is designed for chassis mounting and has dimensions of 222mm x 62mm x 33.6mm.

Key electrical specifications include a line regulation of ±1.0% and a load regulation of ±0.5%. The output voltage is adjustable within a range of -5% to +10% of the rated output voltage. Safety standards include UL62368-1, TUV EN62368-1, and EAC TP TC 004, with EMC compliance to EN55032 Class B and EN61000 standards.

This power supply is built for demanding environments, offering a minimum MTBF of 224.3Khrs at 25°C and a working humidity range of 20% to 90% RH non-condensing. It comes with a 3-year warranty.
