| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | 32 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Termination Style | |
| Voltage | |
| Wire Type |

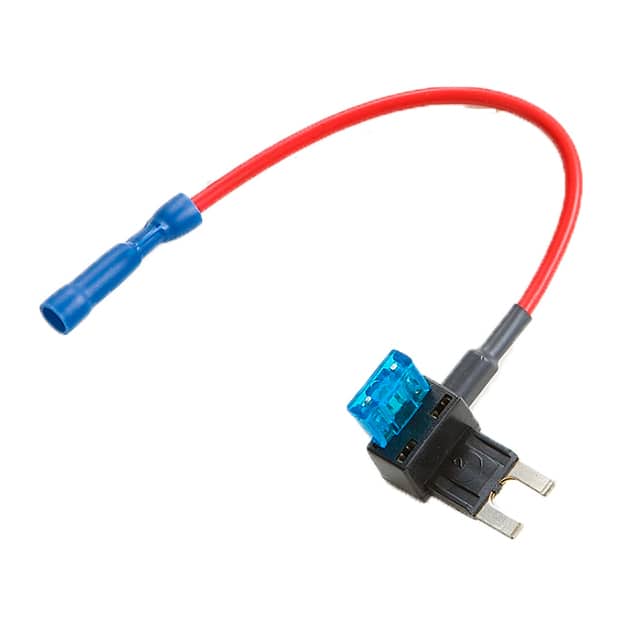

The OptiFuse LPM-08 is a miniature blade fuse add-a-fuse holder designed for automotive and low-voltage applications. It accommodates two circuits: a primary circuit rated at 30A and an auxiliary circuit rated at 10A, with a combined current rating of 30A. The holder is rated for 125VDC and accepts ANM and APM (Miniature) blade fuses.
The device is panel mounted with wire leads terminated via butt-splice connectors. The wire used is 16 AWG, UL 1015 rated for 105°C, in red insulation. The body is constructed from thermoplastic, and the contacts are made of phosphorus bronze with a nickel finish. The fuse size is 0.433" L x 0.152" W (11.00mm x 3.85mm).
The right-angle orientation and compact design make it suitable for tight space installations. The included wire leads simplify integration into existing wiring harnesses. This fuseholder is intended for use with Miniature (ATM) blade fuses, providing overcurrent protection in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.36 | $10.36 |
| 10+ | $9.12 | $9.12 |
| 50+ | $8.49 | $8.49 |
| 100+ | $7.87 | $7.87 |
| 250+ | $7.74 | $7.74 |
| 500+ | $7.59 | $7.59 |
| 1,000+ | $7.46 | $7.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The combined circuits current rating is 30A, with a primary circuit rated 30A and an auxiliary circuit rated 10A.
The voltage rating is 125VDC for use with ANM and APM (Miniature) blade fuses.
It accepts Miniature (ATM) blade fuses with a fuse size of 0.433" L x 0.152" W (11.00mm x 3.85mm).
Panel mount with right-angle orientation and wire leads termination.
16 AWG; UL 1015 105°C; Red wire with butt-splice connectors.
Phosphorus bronze contacts with a nickel finish. The body is made of thermoplastic.
