Mfr Part #:

LPC54101J256UK49Z

The NXP Semiconductors LPC54101J256UK49Z is a 32-bit dual-core microcontroller featuring ARM Cortex-M4 and M0+ processors. It operates at speeds up to 100MHz and includes 256KB of FLASH program memory and 104KB of RAM.

✓ Total Stock: 191,257 pcs

LPC54101J256UK49Z Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	127,257 pcs On Request	127257 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	64,000 pcs On Request	64000 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

LPC54101J256UK49Z Description

Short technical summary and product information.

The LPC54101J256UK49Z from NXP Semiconductors is a low-power 32-bit microcontroller designed for embedded applications. It features dual processor cores, an ARM Cortex-M4 and an ARM Cortex-M0+, both capable of running at up to 100MHz. This device offers 256KB of on-chip FLASH program memory and 104KB of SRAM, providing ample space for code and data.

Connectivity options include I2C, SPI, and UART/USART interfaces, along with peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. The microcontroller supports an operating voltage range of 1.62V to 3.6V and operates within a temperature range of -40°C to 105°C (TA).

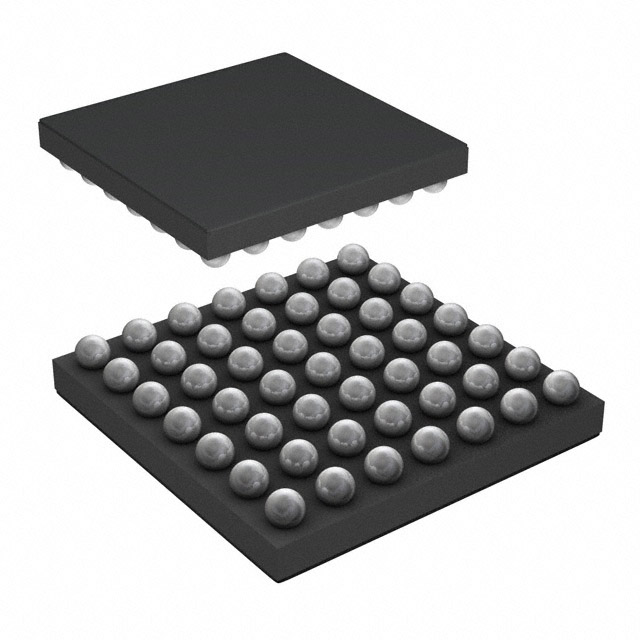

The LPC54101J256UK49Z is supplied in a compact 49-WLCSP (3.29x3.29) package, suitable for surface mounting. Its architecture includes a 12-bit SAR ADC for data conversion and external/internal oscillator types.

This microcontroller is part of the LPC5410x series, known for its efficiency and integration of advanced features for embedded systems.

LPC54101J256UK49Z Quick Information

Product Type: Microcontroller

Series: LPC5410x

Canonical Name: LPC5410x 32-bit ARM Cortex-M4/M0+ Microcontroller

Subcategory: Embedded Microcontrollers

LPC54101J256UK49Z Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LPC54101J256UK49Z Features

Dual ARM Cortex-M4/M0+ cores.
Operates at 100MHz speed.
256KB FLASH program memory.
104KB RAM size.
49-WLCSP surface mount package.

LPC54101J256UK49Z Applications

Suitable for embedded applications.
Designed for low-power operation.
Offers high performance processing.
Supports multiple communication interfaces.

LPC54101J256UK49Z FAQs

7 frequently asked questions generated from this part’s specifications.

What is the core processor of the LPC54101J256UK49Z?

The LPC54101J256UK49Z features dual ARM Cortex-M4 and ARM Cortex-M0+ cores.

What is the operating speed of the LPC54101J256UK49Z microcontroller?

The microcontroller operates at a speed of 100MHz.

How much FLASH memory does the LPC54101J256UK49Z have?

It has 256KB of FLASH program memory.

What is the RAM size of the LPC54101J256UK49Z?

The RAM size is 104K x 8.

What are the connectivity options for the LPC54101J256UK49Z?

Connectivity options include I2C, SPI, and UART/USART.

What is the package type for the LPC54101J256UK49Z?

The device is supplied in a 49-WLCSP (3.29x3.29) package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 105°C (TA).

Category	Microcontrollers
Manufacturer Name	NXP Semiconductors
Connectivity	3 x I2C
Core Processor	ARM Cortex-M4/M0+
Core Size	32-Bit Dual-Core
Data Converters	12-bit 5.0 Msamples/sec ADC
Lead Spacing	3.29x3.29 mm
Mounting Type	Surface Mount
Number of I	39
Operating Temperature	-40°C ~ 105°C (TA)
Oscillator Type	External, Internal
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Size	Up to 512 kB
Program Memory Type	FLASH
RAM Size	104 kB
Speed	Up to 150 MHz
Supplier Device Package	49-WLCSP (3.29x3.29)
Supplier Package	49-WLCSP (3.29x3.29)
Tape & Reel	No
Voltage	1.62V ~ 3.6V
Voltage Supply	Vc
