| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63,439 pcs
|
63439 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,400 pcs
|
5400 pcs | On Request | 1 | On Request | On Request | 21 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Operating Temperature Range | |
| Output Current | |
| Output Voltage | |
| PSRR | |
| Quiescent Current | |
| SVHC Present | |
| Tape & Reel |
The LP5907UVX-2.8/NOPB from Texas Instruments is a 250mA, low-noise, ultra-low-dropout (LDO) voltage regulator designed for RF and analog circuits. It provides a stable 2.8V output with a low dropout voltage of 120mV typical and a very low quiescent current of 12μA when enabled.
Key electrical characteristics include a wide input voltage range of 2.2V to 5.5V and an output voltage range of 1.2V to 4.5V. The regulator boasts low output voltage noise of less than 6.5μVRMS and a high Power Supply Rejection Ratio (PSRR) of 82dB at 1kHz, making it suitable for noise-sensitive applications. It also features thermal-overload and short-circuit protection.

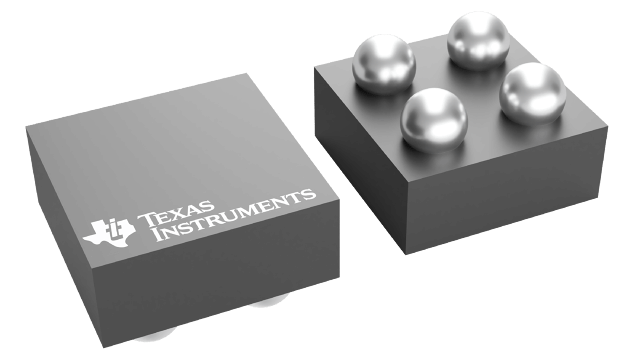

This LDO is available in a compact 4-pin DSBGA (YKE) package, suitable for space-constrained designs. It operates within a temperature range of -40°C to 125°C and is supplied on a 3000-piece reel.
The LP5907 series is designed to meet stringent performance requirements, offering excellent transient response and stability with small ceramic capacitors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fixed output voltage is 2.8V.
The device is offered in a 4-pin DSBGA (YKE) package.
The operating temperature range is -40°C to 125°C.
The typical dropout voltage is 120mV.
The quiescent current is 12µA typical when enabled.
The input voltage range is 2.2V to 5.5V.
The output noise is less than 6.5µVRMS.
