| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Load Capacitance | |
| Output Current | |
| SVHC Present | |
| Thermal Resistance |
The Texas Instruments LP5900TLX-2.6 is a 150mA linear voltage regulator designed for RF and analog circuits. It operates with an input voltage range of 2.5V to 5.5V and provides fixed output voltages from 1.5V to 4.5V, with a specific variant offering 2.6V.
Key electrical characteristics include a low output noise of 6.5 µVrms and a high PSRR of 75 dB at 1 kHz. The device has a typical dropout voltage of 80mV and a low quiescent current of 25µA when enabled. It is stable with a minimum load capacitance of 0.47µF and does not require a bypass capacitor.
For operational flexibility, the LP5900TLX-2.6 includes a logic-controlled enable feature and offers thermal-overload and short-circuit protection. It is available in compact DSBGA and WSON packages, suitable for space-constrained applications. The operating temperature range is -40°C to 125°C.
This LDO regulator is well-suited for applications requiring clean power, such as portable electronics, RF power amplifiers, and analog signal processing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LP5900TLX-2.6 has a fixed output voltage of 2.6V with a tolerance of ±2%.
The maximum output current is 150mA.
The typical dropout voltage is 80mV.
The typical quiescent current is 25µA when enabled, and less than 1µA when disabled.
The operating junction temperature range is -40°C to 125°C.

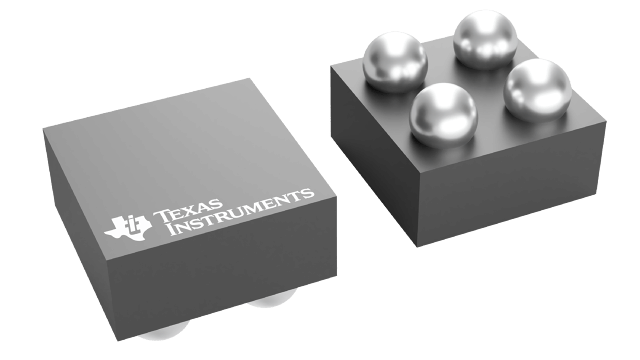

The LP5900TLX-2.6 is available in DSBGA (YZR, YPF) and WSON (NGF) packages.
The typical output noise is 6.5µVrms.
