| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
763 pcs
|
763 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Operating Temperature Range | |
| Output Current | |
| Package Quantity | |
| Quiescent Current | |
| SVHC Present |
The LP3961EMP-2.5NOPB from BenchPro is a fast, ultra-low-dropout linear voltage regulator designed for low-voltage microprocessor applications. It operates with an input supply voltage ranging from 2.5 V to 7 V and can deliver a specified output current of 0.8 A.
Key electrical characteristics include a high accuracy of ±1.5% for the DC output voltage and a low quiescent current of 15 µA in shutdown mode. The device also features a load regulation of 0.02% and an ERROR flag to indicate output status.

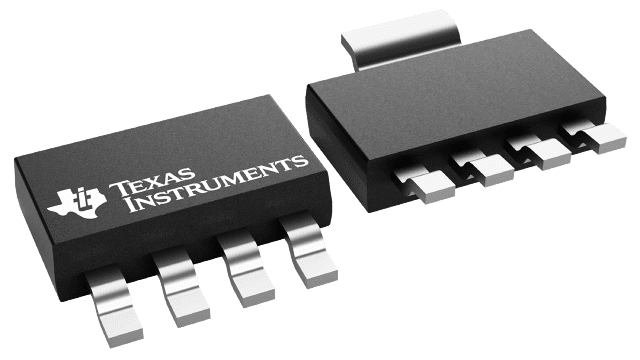

This regulator is housed in a SOT-223 package, suitable for surface mounting. It operates within a junction temperature range of -40°C to 125°C, making it robust for various environmental conditions. The design emphasizes extremely low output capacitor requirements and includes overtemperature and overcurrent protection.
With its fast transient response and low quiescent current, the LP3961EMP-2.5NOPB is well-suited for power management in portable electronics and other demanding applications requiring stable voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.5 V to 7 V.
5-pin SOT-223, supplied in small tape-and-reel with 1000 units per package.
-40 °C to 125 °C.
0.8 A.
±1.5%.
15 µA.
0.02%.
