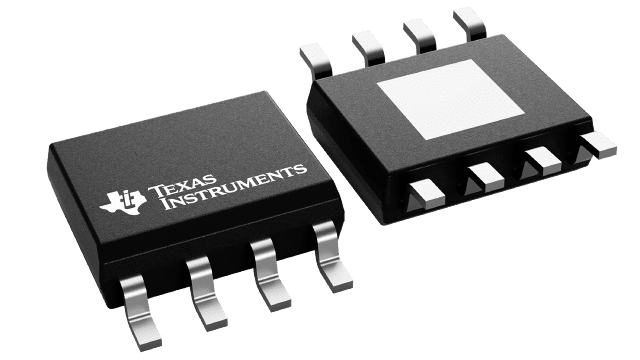

LP2996MRX The Texas Instruments LP2996MRX is a DDR termination regulator designed for DDR and DDR2 memory systems. It operates with an input voltage range of 1.8V to 5.5V and provides a stable output voltage.
Mfr Part #:

LP2996MRX

Available from 1 distributors
Mfr Name: NA
NA
The Texas Instruments LP2996MRX is a DDR termination regulator designed for DDR and DDR2 memory systems. It operates with an input voltage range of 1.8V to 5.5V and provides a stable output voltage.
✓ Total Stock: 51 pcs

LP2996MRX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
51 pcs
On Request
51 pcs On Request 1 On Request On Request 03+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LP2996MRX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Product Type
Tape & Reel
View Similar Products (0)

LP2996MRX Description

Short technical summary and product information.

The LP2996MRX from Texas Instruments is a linear regulator specifically designed to meet JEDEC SSTL-2 specifications for DDR-SDRAM termination. It is also compatible with DDR2 memory.



This regulator features an input voltage range from 1.8V to 5.5V and offers a precise output voltage between 0.656V and 0.698V. It can deliver 1.5A of continuous current and handle transient peaks up to 3A, making it suitable for the demands of DDR-SDRAM termination.



The LP2996MRX includes a shutdown pin for Suspend To RAM (STR) functionality, allowing the VTT output to tri-state while VREF remains active. It also incorporates a VSENSE pin for superior load regulation and a VREF output for chipset and DIMM referencing.



Available in SOIC, WQFN, and HSOIC packages, this device is suitable for surface mount applications. Its design prioritizes stability with ceramic capacitors and offers a low external component count.

LP2996MRX Quick Information

Product Type: DDR Termination Regulator
Canonical Name: LP2996MRX DDR Termination Regulator
Subcategory: Special Purpose Regulators

LP2996MRX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LP2996MRX Features

  • DDR termination regulator for DDR/DDR2 memory.
  • Input voltage range 1.8V to 5.5V.
  • Output voltage 0.656V to 0.698V.
  • 1.5A continuous current capability.
  • Shutdown pin for STR functionality.

LP2996MRX Applications

  • Terminates DDR-SDRAM memory bus lines.
  • Supports DDR2 VTT bus termination.
  • Provides Suspend to RAM (STR) mode.
  • Delivers 1.5A continuous current for DDR termination.
  • Generates VREF reference for chipset and DIMMs.

LP2996MRX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the LP2996MRX?

The input voltage range is from 1.8V to 5.5V.

What is the output voltage range of the LP2996MRX?

The output voltage ranges from 0.656V to 0.698V.

What is the continuous current rating for the LP2996MRX?

The device can deliver 1.5A of continuous current.

What type of memory does the LP2996MRX support?

It supports DDR and DDR2 memory types.

What is the operating temperature range for the LP2996MRX?

The operating temperature range is from 0°C to 125°C.

Does the LP2996MRX have a shutdown feature?

Yes, it features an active-low shutdown pin for Suspend To RAM (STR) functionality.
