| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,781 pcs
|
1781 pcs | On Request | 1 | On Request | On Request | 03+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

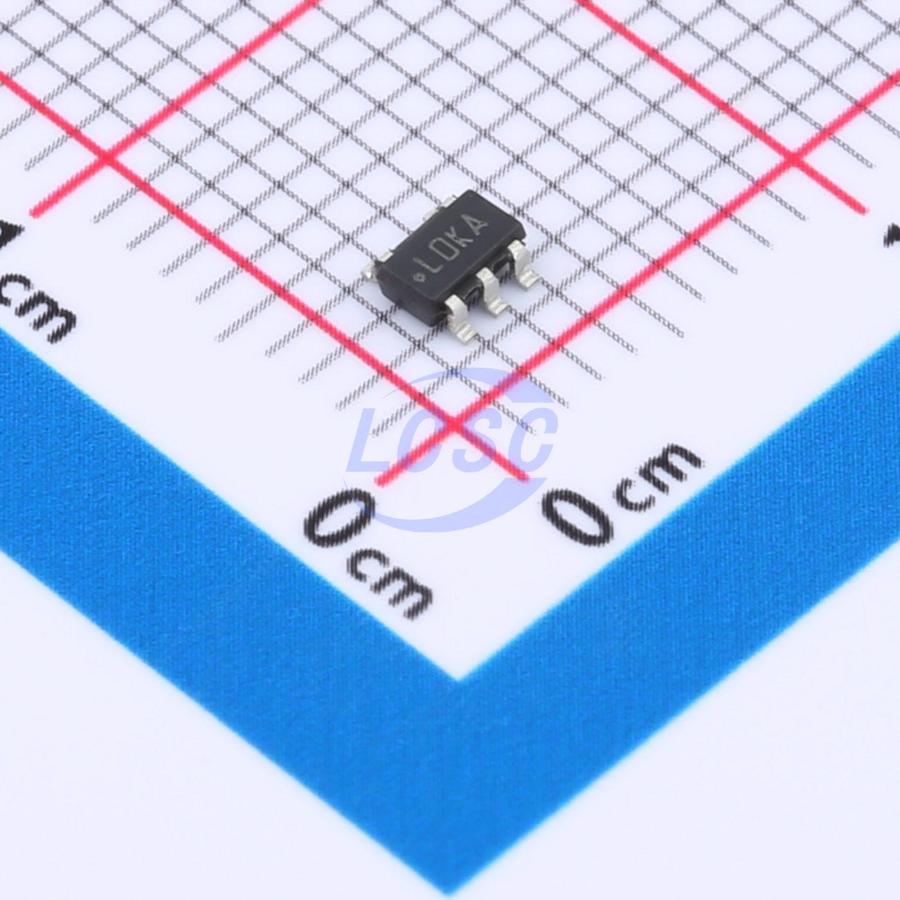

The LP2985AIM5X-2.8/NOPB from Texas Instruments is a fixed-output, wide-input, low-noise, low-dropout voltage regulator designed for various power management applications.
This regulator operates with an input voltage range of 2.5V to 16V and can supply up to 150mA of output current. It offers a precise output voltage with an accuracy of ±0.5% for the new chip design. The device is characterized by its low quiescent current, measuring 71µA at no load and 750µA at full load, and a low shutdown current of 1.12µA typical.
Key electrical features include low noise operation of 30µVRMS with a 10nF bypass capacitor and high Power Supply Rejection Ratio (PSRR) of 70dB at 1kHz and 40dB at 1MHz. The operating junction temperature range is -40°C to +125°C.
The LP2985AIM5X-2.8/NOPB is available in a 5-pin SOT-23 package, suitable for surface mount applications. It is stable with 2.2µF ceramic capacitors and includes output current limiting and thermal protection.
The input voltage range is 2.5V to 16V.
The maximum output current is 150mA.
The output voltage accuracy is ±0.5% for the new chip.
The operating junction temperature range is -40°C to +125°C.
It is supplied in a 5-pin SOT-23 package.
The RoHS status is RoHS3 Compliant.
The MSL is Level 1.
