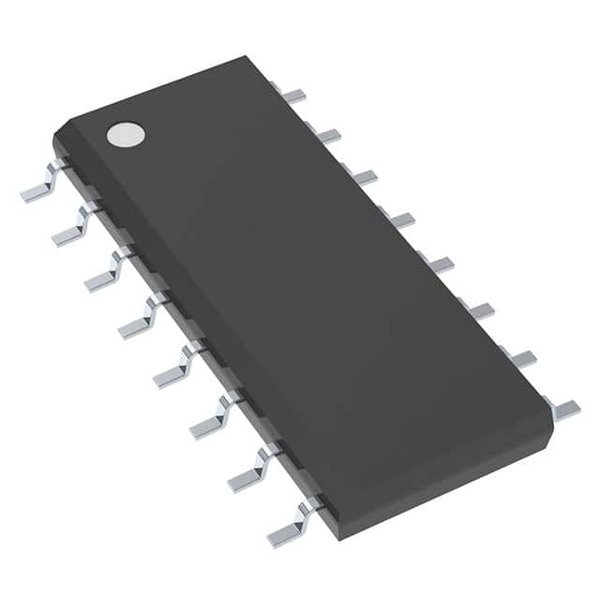

LP2951J The Texas Instruments LP2951J is a linear voltage regulator with an adjustable output voltage up to 29V and a maximum output current of 250mA. It is designed for surface mount applications in a 16-SOIC package.
Mfr Part #:

LP2951J

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LP2951J is a linear voltage regulator with an adjustable output voltage up to 29V and a maximum output current of 250mA. It is designed for surface mount applications in a 16-SOIC package.
✓ Total Stock: 1,000 pcs

LP2951J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LP2951J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Input Voltage
Lead Style
Mounting Type
Number of Regulators
Operating Temperature
Output Current
Package / Case
Protection Features
Quiescent Current
SVHC Present
Supply Current
View Similar Products (0)

LP2951J Description

Short technical summary and product information.

The Texas Instruments LP2951J is a versatile linear voltage regulator designed for various power management applications. It offers an adjustable output voltage ranging from 1.23V up to 29V, making it suitable for a wide array of system requirements. With a maximum output current capability of 250mA and a low quiescent current of 170µA, it is well-suited for battery-powered devices and systems where power efficiency is critical.



This regulator features essential protection mechanisms, including overcurrent, overtemperature, and reverse polarity protection, enhancing system reliability. The device also includes an enable control feature for logic-controlled shutdown. Packaged in a standard 16-SOIC surface mount configuration, the LP2951J is designed for ease of integration into compact electronic designs. Its operating temperature range is -40°C to 125°C, ensuring performance in diverse environmental conditions.

LP2951J Quick Information

Product Type: Voltage Regulator
Series: LP2951
Canonical Name: LP2951J Adjustable Micropower Voltage Regulator
Subcategory: LDO

LP2951J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LP2951J Features

  • Adjustable output voltage up to 29V.
  • Maximum output current of 250mA.
  • Low quiescent current of 170µA.
  • Includes overcurrent and overtemperature protection.
  • Surface mount 16-SOIC package.

LP2951J Applications

  • Suitable for battery-powered systems.
  • Ideal for portable electronic devices.
  • Used in power management circuits.
  • Provides stable voltage regulation.

LP2951J FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the LP2951J?

The LP2951J has an adjustable output voltage range from 1.23V to 29V.

What is the package type of the LP2951J?

The LP2951J is available in a 16-SOIC surface mount package.

What is the operating temperature range of the LP2951J?

The LP2951J operates from -40°C to 125°C.

What is the maximum output current of the LP2951J?

The maximum output current is 250mA.

What is the dropout voltage of the LP2951J?

The maximum dropout voltage is 0.6V at 100mA load.

What protection features does the LP2951J include?

The LP2951J includes over current, over temperature, and reverse polarity protection.

Does the LP2951J have an enable control?

Yes, the LP2951J includes an enable control feature.
