| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Class | |
| Current Rating (Amps) | |
| Fuse Type | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating |

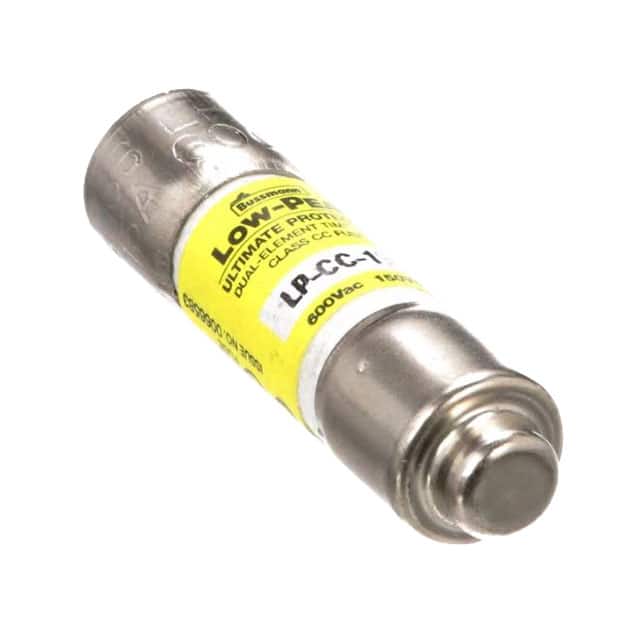

The Eaton Bussmann LP-CC-15 is a Class CC slow blow cartridge fuse rated for 15A continuous current. It provides overcurrent protection for circuits up to 600VAC and 150VDC, with a high interrupting rating of 200kA AC and 20kA DC. The fuse is designed for motor protection applications, ensuring reliable performance under inductive load conditions.
The LP-CC-15 features a 5AG (10mm x 38mm) midget package and requires a holder for installation. It is approved by CE, CSA, and UR, indicating compliance with North American and international safety standards. The slow blow response time allows it to withstand temporary inrush currents without nuisance tripping, making it suitable for motor starting and other applications with high surge currents.
This fuse is part of Eaton's Bussmann series of specialty fuses, known for robust construction and reliable protection. It is a direct replacement for many industrial fuse holders and is cross-referenced by Digi-Key as part number 2041-1086-ND. For detailed specifications, refer to the manufacturer's documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $88.84 | $88.84 |
| 5+ | $80.11 | $80.11 |
| 10+ | $72.75 | $72.75 |
| 50+ | $62.72 | $62.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LP-CC-15 is rated for 15A continuous current.
The LP-CC-15 is rated for 600VAC and 150VDC.
The breaking capacity is 200kA AC and 20kA DC.
The LP-CC-15 has a slow blow (time-delay) response.
The package is 5AG, measuring 10mm x 38mm (Midget).
It is a Class CC fuse.
It is approved by CE, CSA, and UR.
