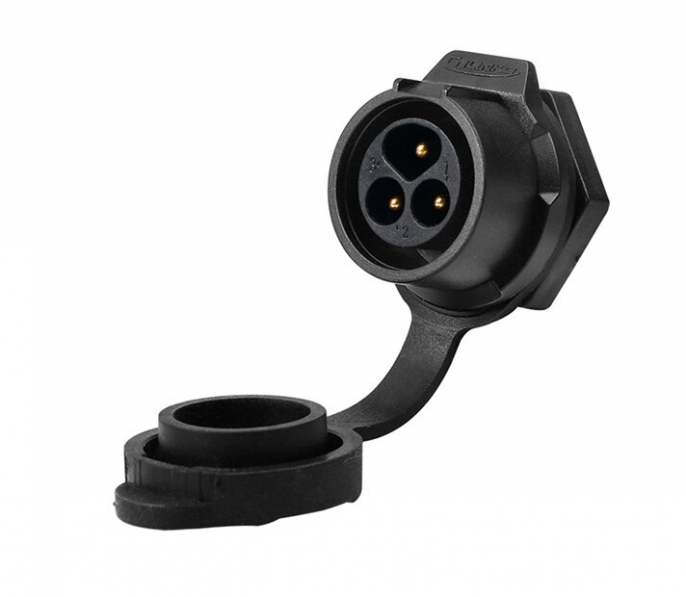

LP-16-C03SX-02-101 The Cnlinko LP-16-C03SX-02-101 is a 3-pin panel mount connector designed for high-quality, waterproof connections. It features a 10A current rating and IP67 protection.
Mfr Part #:

LP-16-C03SX-02-101

Available from 2 distributors
Mfr Name: Cnlinko
Cnlinko
The Cnlinko LP-16-C03SX-02-101 is a 3-pin panel mount connector designed for high-quality, waterproof connections. It features a 10A current rating and IP67 protection.
✓ Total Stock: 6,400 pcs
$ Price Range: $0.99

LP-16-C03SX-02-101 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3,200 pcs
On Request
3200 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
3,200 pcs
On Request
3200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LP-16-C03SX-02-101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Mounting Type
Number of Contacts
Operating Temperature
Termination Style
Voltage Rating
Wire Gauge
View Similar Products (0)

LP-16-C03SX-02-101 Description

Short technical summary and product information.

The Cnlinko LP-16-C03SX-02-101 is a miniature connector from the LP-16 series, designed for applications requiring high quality and reliable waterproof connections. This panel mount connector features 3 pins and is rated for a current of 10A and a voltage of 400V.



It supports a cable range of 1.0-1.5 mm² (18-16 AWG) and has an operating temperature range of -40°C to +80°C. The connector offers IP67 protection, ensuring its suitability for demanding environments. The termination style is soldering.



This series is known for its ability to connect automatically, making it suitable for various industrial and automated systems where robust and secure connections are essential.

LP-16-C03SX-02-101 Quick Information

Product Type: Connector
Series: LP-16
Canonical Name: Cnlinko LP-16-C03SX-02-101 Panel Mount Connector
Subcategory: Panel Mount Connector

LP-16-C03SX-02-101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LP-16-C03SX-02-101 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LP-16-C03SX-02-101 Features

  • 3-pin panel mount connector.
  • Rated for 10A current and 400V voltage.
  • IP67 rated for dust and water protection.
  • Supports 1.0-1.5 mm² cable range.
  • Operates from -40°C to +80°C.

LP-16-C03SX-02-101 Applications

  • Ideal for industrial automation systems.
  • Suitable for high-quality waterproof connections.
  • Used in demanding environmental conditions.
  • Ensures reliable automatic connections.

LP-16-C03SX-02-101 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the LP-16-C03SX-02-101?

400V.

What is the operating temperature range?

-40°C to +80°C.

What is the mounting type?

Panel mount.

What is the termination style?

Soldering.

What is the current rating?

10A.

What cable sizes does it accept?

1.0-1.5 mm² (18-16 AWG).

What is the IP protection class?

IP67.
