| Category | |
| Manufacturer Name | |
| Operating Temperature | |
| Output Type | |
| Response Time | |
| Storage Temperature | |
| Supply Voltage |

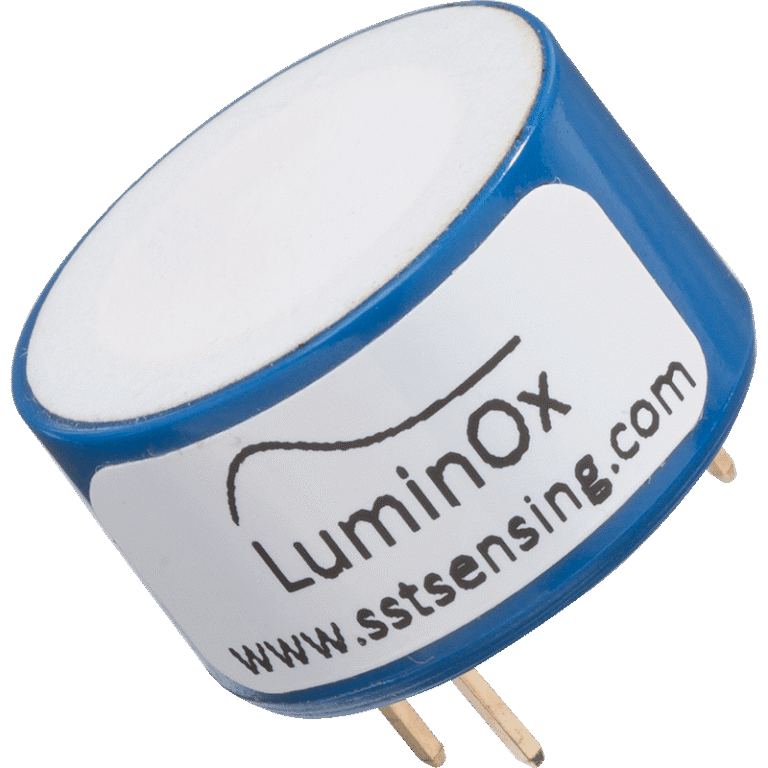

The SST LOX-02 Sealed Optical Oxygen Sensor is designed for precise oxygen measurement in various environments. It employs a non-depleting luminescence technology developed by SST, offering a longer lifespan and lower power consumption compared to traditional electrochemical sensors.
This sensor features a gas-tight sealed back end, simplifying gas sample management and ensuring only the sensor face is exposed to the sample gas. It operates with a supply voltage of 4.5VDC to 5.5VDC and outputs data via a 3.3V TTL level UART interface, allowing direct connection to microcontrollers like Arduino and Raspberry Pi.
Key specifications include an oxygen measurement range of 0-25% O2 and 0-300mbar ppO2, with a typical response time (T90) of under 30 seconds. It also provides barometric pressure readings from 500-1200mbar and temperature indication. The operating temperature range is 0°C to 45°C.
Compliance includes RoHS3 and REACH Unaffected status. The sensor is suitable for applications such as clean environments, welding, incubators, inert gas processes, transportation, and controlled atmosphere systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LOX-02 sensor operates with a supply voltage between 4.5VDC and 5.5VDC.
The LOX-02 sensor measures oxygen in a range of 0 to 25% O2 and 0 to 300mbar ppO2.
The typical response time (T90) for the LOX-02 sensor is less than 30 seconds.
The LOX-02 sensor can operate in temperatures ranging from 0°C to 45°C.
Yes, the LOX-02 sensor is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LOX-02 sensor is 1 Unlimited.
Yes, the LOX-02 sensor is REACH Unaffected.
