| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

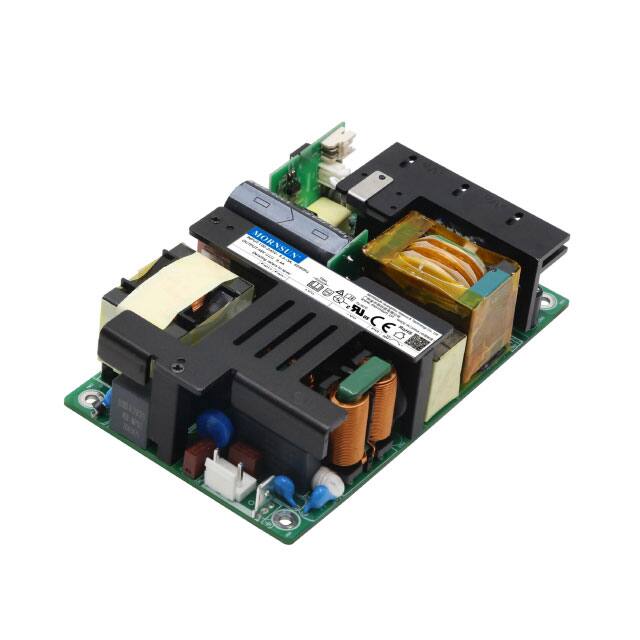

The Mornsun LOF550-20B24 is an open frame AC DC converter designed for various applications. It operates with a wide input voltage range of 90-264Vac, providing a stable 24Vdc output at a maximum current of 22.9A, delivering up to 549W of power. This unit boasts an efficiency of 93% and operates within a temperature range of -40°C to 70°C with derating.
Featuring a chassis mount design, the LOF550-20B24 has dimensions of 127.0mm x 76.2mm x 40.5mm. Its features include adjustable output, baseplate cooling capability, DC input capability, Power Factor Correction (PFC), remote sense, a standby output, and universal input. It is suitable for applications in household appliances, ITE (Commercial), and laboratories. The converter is certified by CE, cURus, and UL, and complies with standard numbers 60335-1, 60601-1, and 62368-1.
The operating temperature range is -40°C to 70°C with derating.
The input voltage range is 90 to 264Vac.
It provides a single 24Vdc output.
The maximum output current is 22.9A.
The total output power is 549W.
The efficiency is 93%.
It holds CE, cURus, and UL approvals, complying with standards 60335-1, 60601-1, and 62368-1.
