| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

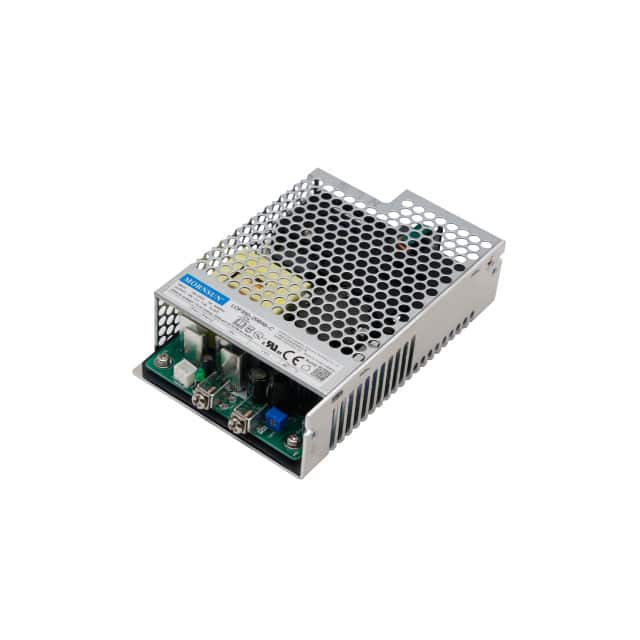

The LOF350-20B48-C from Mornsun America LLC is an enclosed AC DC converter designed for reliable power conversion. It provides a robust 200W output power with a current rating of 4.17A and boasts an impressive efficiency of 94%.
This converter is suitable for a variety of applications, including household appliances, ITE (Commercial), and medical equipment. It features adjustable output, Power Factor Correction (PFC), a standby output, and universal input capabilities, making it a versatile choice for many designs. The unit is chassis mounted and operates within a temperature range of -40°C to 70°C with derating.
Key specifications include an isolation voltage of 4 kV and compliance with standards such as 60335-1, 60601-1, and 62368-1. The dimensions are 130.0mm x 86.0mm x 35.0mm. It is RoHS3 compliant and has an MSL rating of 1.
Enclosed, chassis mount.
-40°C to 70°C with derating.
94%
4.17 A
4 kV
Household Appliances, ITE (Commercial), Medical
CE, cURus
