| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

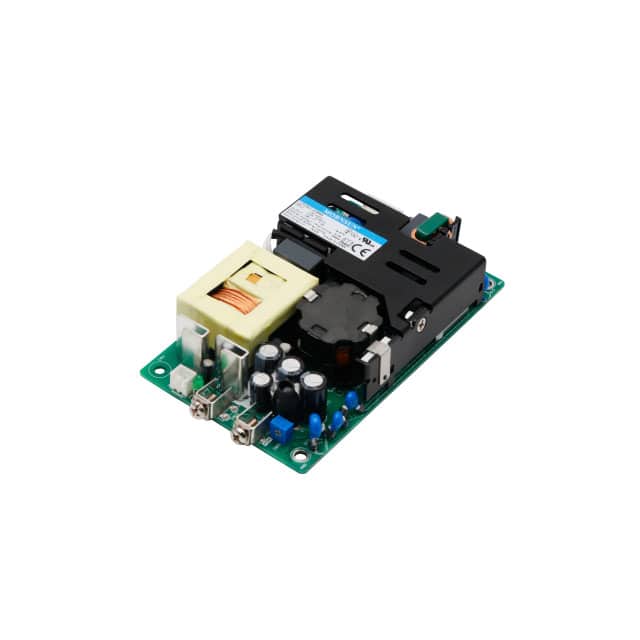

The Morning Star Industrial LOF350-20B36 is an open frame AC/DC converter designed for chassis mounting. It delivers 200W of power with a 5.56A current output and features adjustable output, Power Factor Correction (PFC), and a standby output.
This converter operates with an efficiency of 93% and offers universal input. Its isolation voltage is rated at 4 kV. The operating temperature range is from -40°C to 70°C, with derating applied.
Applications for the LOF350-20B36 include household appliances, ITE (Commercial), and medical equipment. It is approved by CE and cURus and complies with standards such as 60335-1, 60601-1, and 62368-1.
The dimensions are 127.0mm x 76.2mm x 25.4mm. It has a single output and is RoHS3 compliant.
36V.
Open frame chassis mount, 127mm x 76.2mm x 25.4mm.
-40°C to 70°C with derating.
93%.
4kV.
CE and cURus.
Household appliances, ITE (commercial), and medical.
