| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

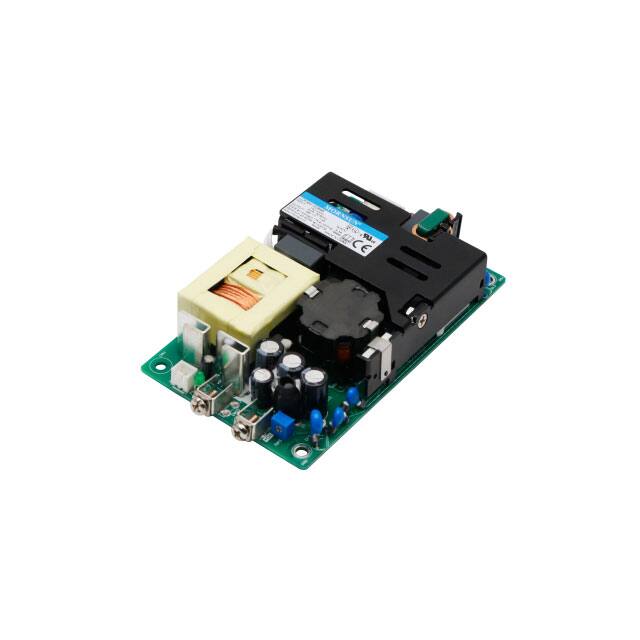

The MORNSUN LOF350-20B27 is a versatile open frame AC/DC power supply designed for a wide range of applications. It accepts universal AC input voltages from 90-264VAC and also DC input from 127-370VDC, offering flexibility in system design.
This power supply provides a stable 27V output with a maximum current of 7.4A, delivering up to 200W of power. It boasts a high efficiency of 93% at 230VAC and features built-in active PFC function. The unit is designed for operation in ambient temperatures ranging from -40°C to +70°C with derating.
Key features include high I/O isolation up to 4000VAC, extremely low leakage current, and low standby power consumption. It offers output short circuit, over-current, over-voltage, and over-temperature protection. The compact size and chassis mount type make it suitable for integration into various systems.
Compliance with standards such as IEC62368-1, IEC60335-1, and IEC60601-1 makes it suitable for industrial, ITE (Commercial), and medical applications, including BF type medical equipment.
The input voltage range is 90-264 VAC or 127-370 VDC.
The output is 27V at 7.4A.
The output power is 200W.
The efficiency is 93%.
The operating temperature range is -40°C to +70°C with derating.
The isolation voltage is 4 kV.
The package dimensions are 130mm x 86mm x 35mm.
