| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

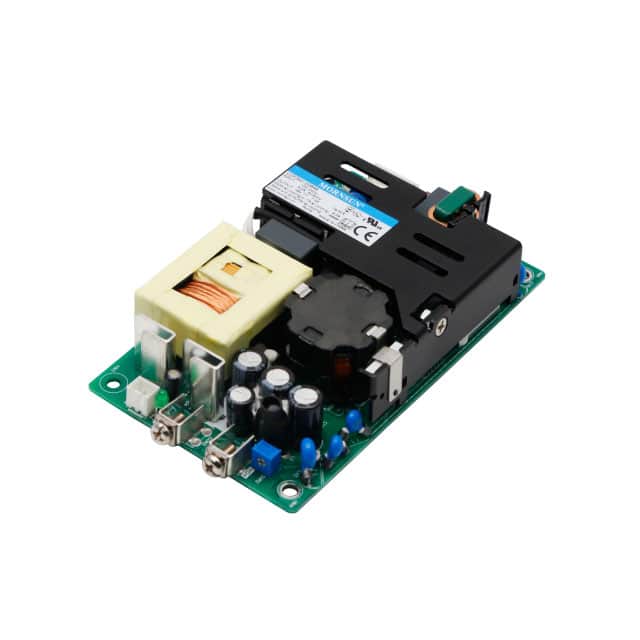

The Morning Star Industrial LOF350-20B24 is a 200W AC/DC converter designed for various applications including household appliances, ITE (Commercial), and medical equipment. This open frame unit offers a 24V output and features adjustable output, Power Factor Correction (PFC), a standby output, and universal input capabilities.
With a chassis mount design, it integrates easily into system builds. The converter operates efficiently with 93% efficiency and provides 4kV of isolation voltage. Its dimensions are 127.0mm x 76.2mm x 25.4mm, making it suitable for space-constrained applications. The operating temperature range is -40°C to 70°C with derating.
Compliance is met with standards such as 60335-1, 60601-1, and 62368-1, and it holds CE and cURus approvals. The RoHS status is compliant with RoHS3.
The LOF350-20B24 provides a 24V output.
The power rating is 200W.
It uses a chassis mount.
Key features include adjustable output, PFC, standby output, and universal input.
The operating temperature range is -40°C to 70°C with derating.
It complies with standards 60335-1, 60601-1, and 62368-1.
The RoHS status is RoHS3 Compliant.
