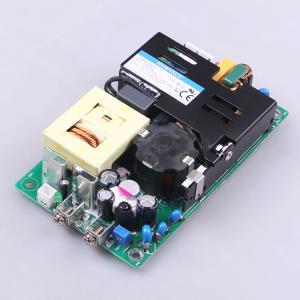

The Morning Star Industrial LOF350-20B15 is an open frame AC/DC converter designed for various applications including household appliances, ITE (Commercial), and medical devices. It provides a power output of 180W with a current rating of 12A.
Key electrical specifications include 92% efficiency and universal input with PFC. The converter is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 25.4mm. It operates within a temperature range of -40°C to 70°C with derating.
This model meets safety standards such as 60335-1, 60601-1, and 62368-1, and holds CE and cURus approvals. It is RoHS3 Compliant and has an MSL rating of 1 Unlimited.
15V.
180W.
-40°C to 70°C with derating.
127.0mm x 76.2mm x 25.4mm (5.00" x 3.00" x 1.00").
CE and cURus.
60335-1 (household appliances), 60601-1 (medical), and 62368-1 (ITE).
92%.
