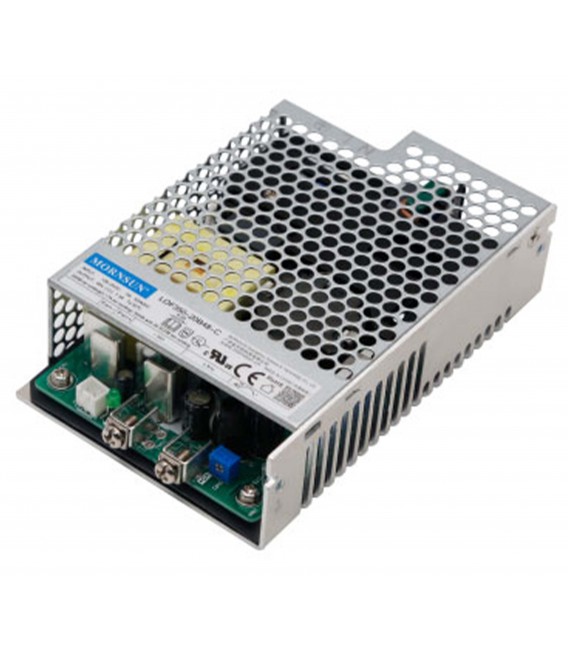

The Morning Star Industrial LOF350-20B12-C is an enclosed AC/DC power supply module designed for reliable power conversion. It delivers 180W of power with a single output of 15A. This module boasts high efficiency at 92% and features like adjustable output, Power Factor Correction (PFC), and a universal input.
Designed for versatility, the LOF350-20B12-C is suitable for various applications including household appliances, commercial ITE (Information Technology Equipment), and medical devices. It operates within a wide temperature range of -40°C to 70°C with derating.
With a chassis mount type, this converter is intended for integration into larger systems. Its dimensions are 130.0mm in length, 86.0mm in width, and 35.0mm in height. The module is approved by CE and cURus, adhering to standards such as 60335-1, 60601-1, and 62368-1.
The LOF350-20B12-C has a power output of 180W.
The module provides an output current of 15 A.
The operating temperature range is -40°C to 70°C, with derating.
This module uses chassis mount type.
Key features include adjustable output, PFC, standby output, and universal input.
