| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

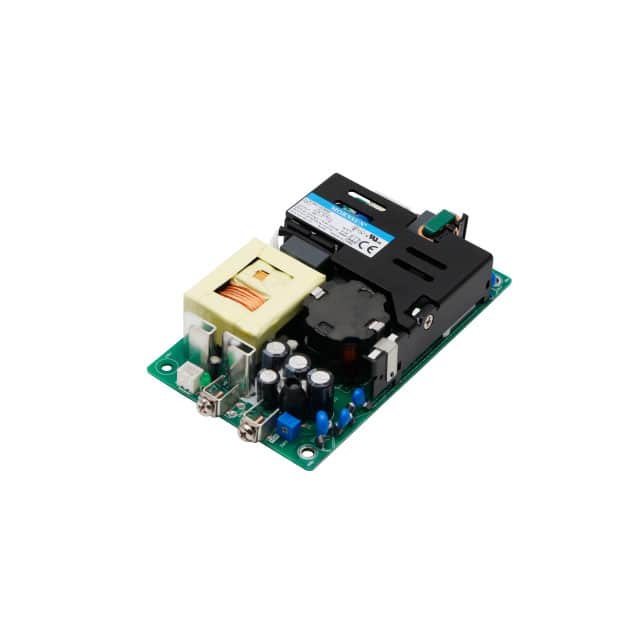

The Morning Star Industrial LOF350-20B12 is a versatile AC/DC power supply module designed for various applications. Featuring an open frame construction and chassis mount type, it offers a power output of 180W and a current rating of 15A.
Key specifications include an efficiency of 92%, a wide operating temperature range from -40°C to 70°C (with derating), and compliance with safety standards such as CE and cURus. The module supports adjustable output, Power Factor Correction (PFC), a standby output, and universal input, making it suitable for household appliances, ITE (Commercial), and medical equipment.
Its dimensions are 127.0mm x 76.2mm x 25.4mm. The LOF350-20B12 is designed for reliable performance in demanding environments.
The LOF350-20B12 has a power output of 180W.
The maximum current output for the LOF350-20B12 is 15A.
The LOF350-20B12 uses chassis mount.
The operating temperature range is -40°C to 70°C (With Derating).
The dimensions are 127.0mm in length, 76.2mm in width, and 25.4mm in height.
It features adjustable output, PFC, standby output, and universal input.
The LOF350-20B12 is approved by CE and cURus.
