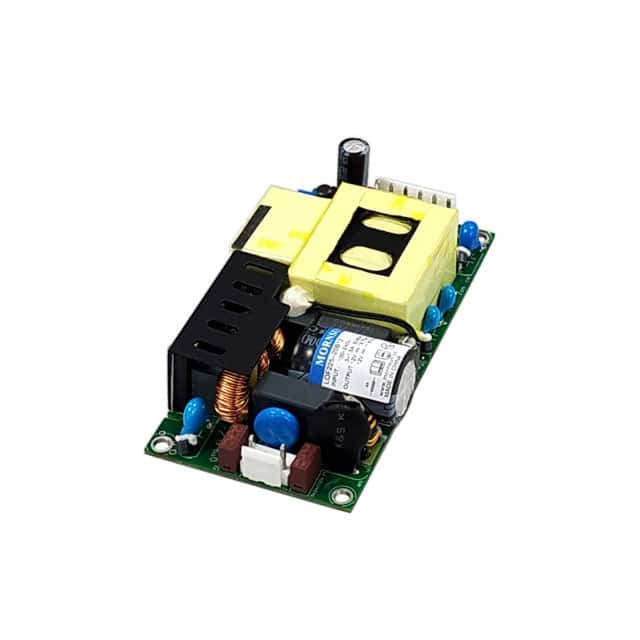

The MORNSUN LOF225-20B48 is a high-power-density AC/DC enclosed SMPS power supply. It delivers 140W of power with a single 48VDC output. The unit accepts a wide input voltage range of 85-264 VAC and 120-370 VDC, making it suitable for global applications.
Key electrical specifications include an efficiency of 94% and an output current of 2.91A. The converter features adjustable output, Power Factor Correction (PFC), a standby output, and universal input capabilities. It provides 4000 VAC isolation.
Designed for chassis mounting, this AC/DC converter has dimensions of 101.6mm x 50.8mm x 25.4mm. It operates within a temperature range of -40°C to 70°C with derating. The product is certified by CE and cURus, adhering to standards such as 60335-1, 60601-1, and 62368-1.
This power supply is suitable for applications in household appliances, ITE (Commercial), and medical equipment.
The output voltage is 48 VDC.
The power rating is 140W.
The input voltage range is 85-264 VAC or 120-370 VDC.
The operating temperature range is -40°C to 70°C (With Derating).
The dimensions are 101.6mm x 50.8mm x 25.4mm.
It is certified by CE and cURus.
