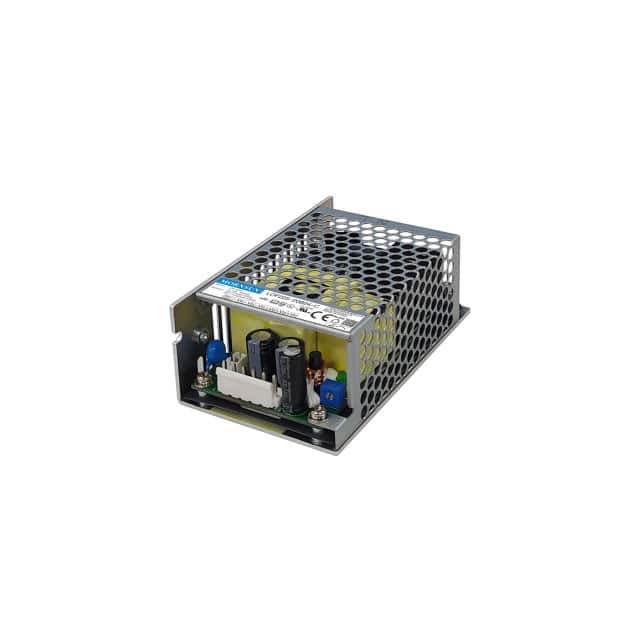

The MORNSUN LOF225-20B24-C is an enclosed AC/DC power supply designed for high power density applications. It operates with an input voltage range of 85-264 VAC or 120-370 VDC, providing a stable 24VDC output at 9.4A, for a total of 225W.
Key electrical specifications include an efficiency of 94% and an isolation voltage of 4000 VAC. This converter supports features such as adjustable output, power factor correction (PFC), a standby output, and universal input.
Designed for chassis mounting, this unit has dimensions of 103.4mm x 62.0mm x 37.0mm. It is suitable for applications in household appliances, ITE (Commercial), and medical equipment, adhering to standards like 60335-1, 60601-1, and 62368-1. The operating temperature range is -40°C to 70°C with derating.
85-264 VAC or 120-370 VDC.
103.4mm x 62.0mm x 37.0mm, chassis mount enclosed.
-40°C to 70°C with derating.
24 VDC at 9.4 A (225W).
94%.
4000 VAC input-to-output.
CE and cURus approved, compliant with 60335-1, 60601-1, and 62368-1.
