| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

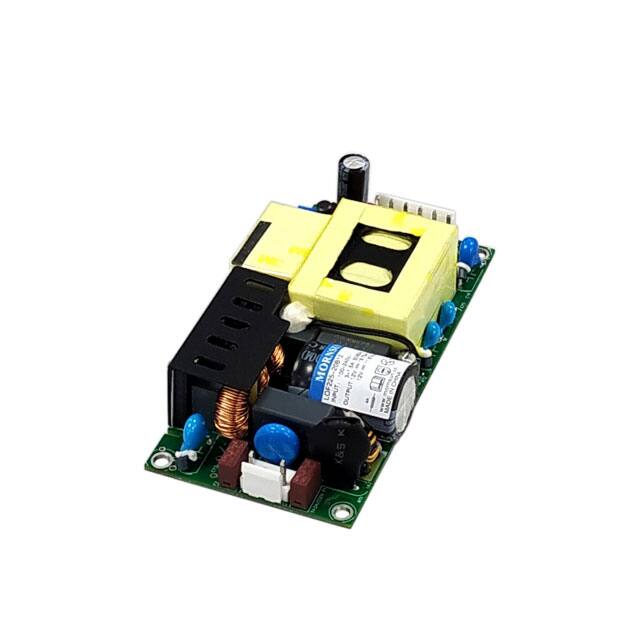

The MORNSUN LOF225-20B24 is an AC/DC enclosed SMPS power supply from the high power density type series, offering 140W of power.
This converter operates with a wide input voltage range of 85-264 VAC and 120-370 VDC, providing a stable 24VDC output at 9.4A. It boasts a high efficiency of 94% and features like adjustable output, Power Factor Correction (PFC), and a standby output. The isolation voltage is rated at 4000 VAC.
Designed for chassis mounting, the LOF225-20B24 has a compact footprint with dimensions of 101.6mm x 50.8mm x 25.4mm. It operates reliably within an ambient temperature range of -40°C to 70°C, with derating applied at higher temperatures. The unit is compliant with safety standards such as 60335-1, 60601-1, and 62368-1, and carries CE and cURus agency approvals.
Key applications for this power supply include ITE (Commercial), Household Appliances, and Medical equipment, where its robust design and features ensure dependable power conversion.
85-264 VAC or 120-370 VDC.
24 VDC.
94%.
4000 VAC.
-40°C to 70°C with derating.
Chassis mount, open frame.
60335-1, 60601-1, 62368-1.
