| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

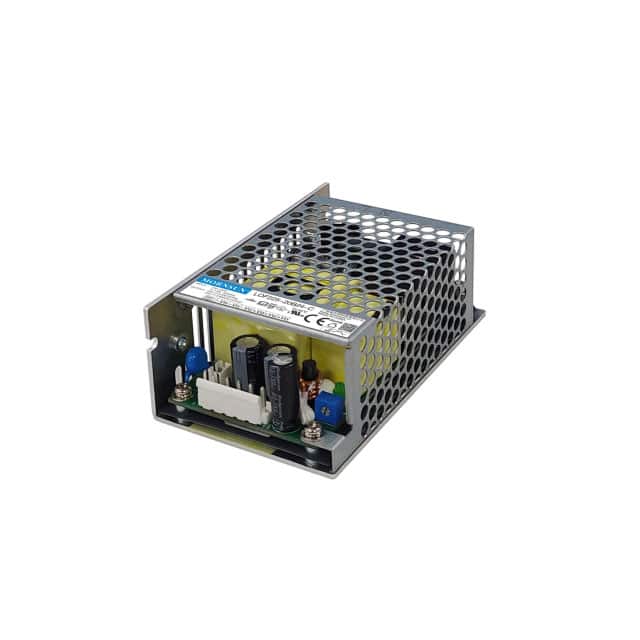

The MORNSUN LOF225-20B12-C is an enclosed AC/DC power supply designed for high power density applications. It operates with an input voltage range of 85-264 VAC or 120-370 VDC, providing a stable 12VDC output.
This converter boasts a maximum output power of 225W and an output current of 18.75A. It achieves a high efficiency of 93% and offers a significant isolation voltage of 4000 VAC, ensuring safety and reliability in demanding environments. Key features include adjustable output, Power Factor Correction (PFC), a standby output, and universal input capability.
The unit is designed for chassis mounting and operates within a temperature range of -40°C to 70°C, with derating. Its dimensions are 103.4mm x 62.0mm x 37.0mm. The LOF225-20B12-C is suitable for applications in household appliances, ITE (Commercial), and medical equipment, adhering to safety standards such as 60335-1, 60601-1, and 62368-1.
The output voltage is 12 VDC.
The maximum output current is 18.75 A.
The power rating is 225 W.
The efficiency is 93%.
It provides 4000 VAC of isolation.
The operating temperature range is -40°C to 70°C, with derating.
It requires chassis mounting.
