| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

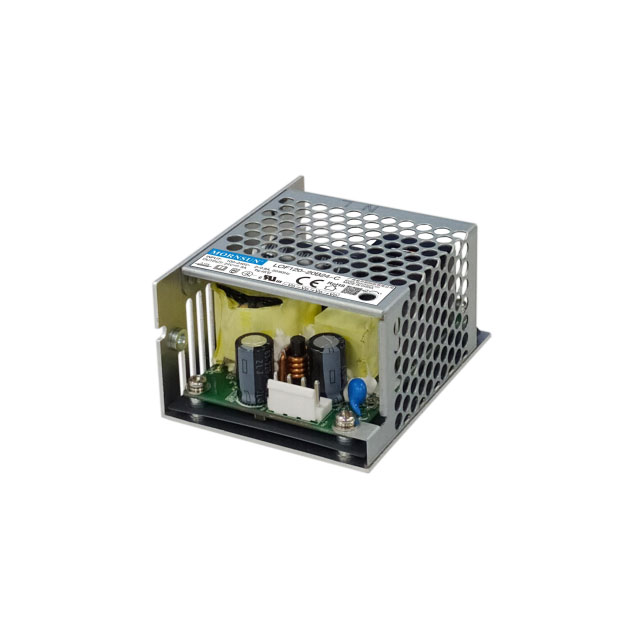

The Mornsun America, LLC LOF120-20B48-C is an enclosed AC/DC converter designed for various applications including household appliances, ITE (Commercial), and medical equipment. This unit delivers 120W of power with a single 48V output at 2.5A.
Key electrical specifications include a universal input voltage range of 85-264 VAC or 120-370 VDC, and an impressive efficiency of 94.5%. The converter also features adjustable output, PFC, standby output, and an isolation voltage of 4 kV. It operates within a temperature range of -40°C to 85°C with derating.
Mechanically, the LOF120-20B48-C is designed for chassis mounting and has dimensions of 80.0mm x 62.0mm x 40.0mm. It complies with safety standards such as 60335-1, 60601-1, and 62368-1, carrying CE and cURus approvals. The part is RoHS3 compliant and has an MSL rating of 1.
The input voltage range is 85 to 264 VAC and 120 to 370 VDC.
It provides a single output of 48V at up to 2.5 Amps.
The efficiency is 94.5%.
The isolation voltage is 4 kV.
The operating temperature range is -40°C to 85°C with derating.
It is an enclosed chassis mount unit, packaged in a box.
It is suitable for household appliances, ITE (commercial), and medical applications as per standards 60335-1, 60601-1, and 62368-1.
