| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

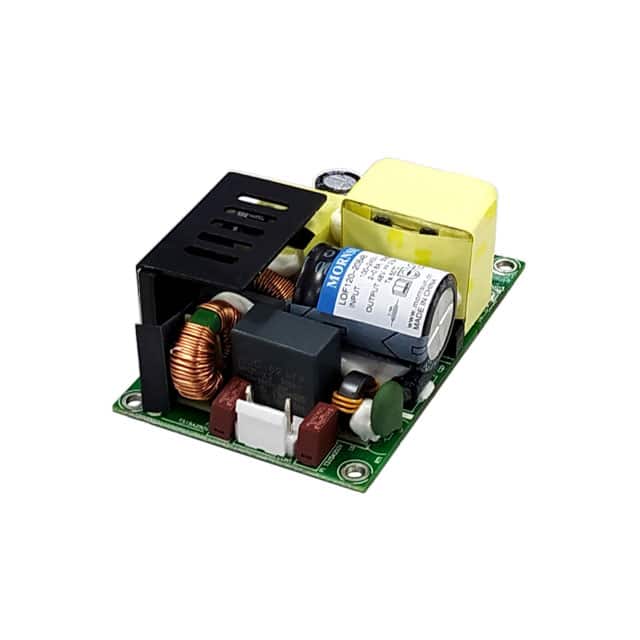

The LOF120-20B48 from Morning Star Industrial is an open-frame AC/DC converter with a power rating of 120W and a 48V output voltage. It is designed for chassis mounting and offers a universal input voltage range of 85-264 VAC or 120-370 VDC.
Key features include adjustable output, Power Factor Correction (PFC), and a standby output. The converter boasts a high efficiency of 94.5% and operates within a temperature range of -40°C to 85°C with derating. It is suitable for applications in household appliances, ITE (Commercial), and medical fields, with approvals from CE and cURus.
This model adheres to safety standards such as 60335-1, 60601-1, and 62368-1. Its dimensions are 76.2mm x 50.8mm x 31.0mm.
-40°C to 85°C with derating.
94.5%
85-264 VAC or 120-370 VDC.
Adjustable Output, PFC, Standby Output, Universal Input.
60335-1, 60601-1, 62368-1.
48V at 2.5A, 120W.
Chassis Mount.
