| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

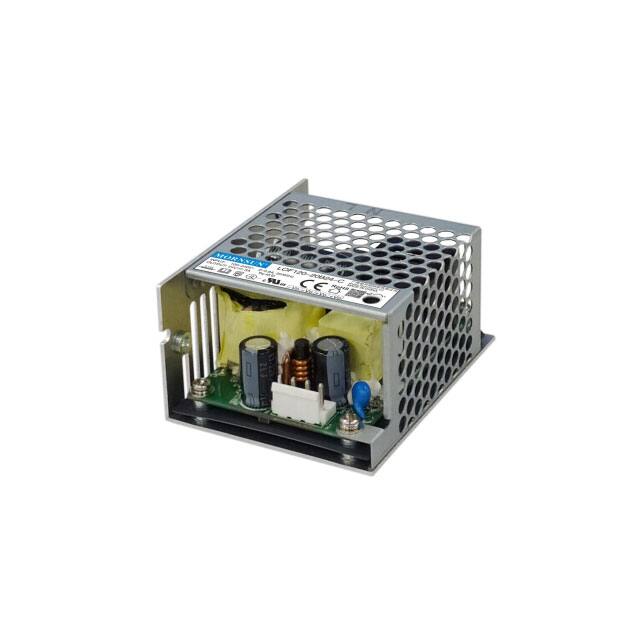

The LOF120-20B36-C from Morning Star Industrial is an enclosed AC/DC converter designed for various applications including household appliances, ITE commercial, and medical equipment. This unit delivers 120W of power with an output current of 3.33A and a voltage output of 36V.
Key electrical specifications include a high efficiency of 94%, an isolation voltage of 4kV, and features such as adjustable output, power factor correction (PFC), and a standby output. The operating temperature range is -40°C to 85°C with derating.
Designed for chassis mounting, this converter meets safety standards including 60335-1, 60601-1, and 62368-1, and carries CE and cURus approvals. Its dimensions are 80.0mm x 62.0mm x 40.0mm.
Environmental compliance includes RoHS3 compliance, REACH unaffected status, and an MSL of 1.
-40°C to 85°C (with derating).
94%.
4 kV.
3.33 A.
Chassis Mount.
80.0mm x 62.0mm x 40.0mm.
Household Appliances, ITE (Commercial), and Medical.
