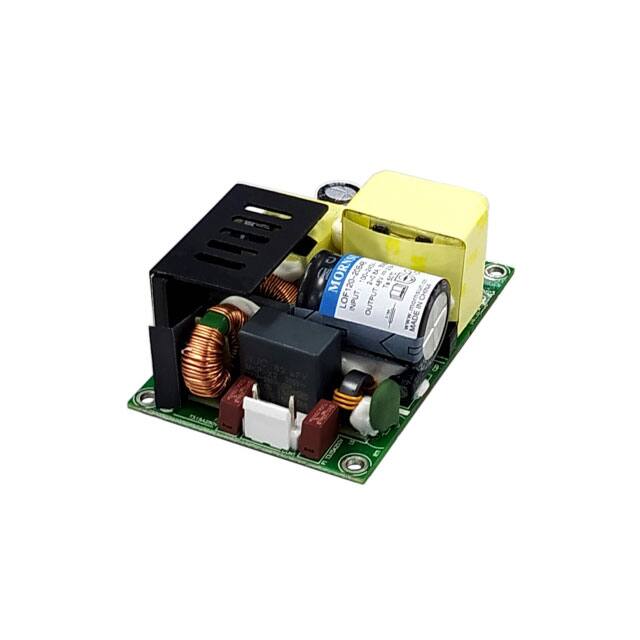

The MORNSUN LOF120-20B27 is an open-frame AC/DC converter designed for chassis mounting. It provides a power output of 120W with a 27V output voltage and 4.5A current, featuring an efficiency of 95% and convection power of 84W.
Key features include adjustable output, Power Factor Correction (PFC), a standby output, and universal input capabilities. The converter operates within a temperature range of -40°C to 85°C with derating and offers an isolation voltage of 4 kV. It is approved by CE and cURus agencies.
This AC/DC converter is suitable for applications in household appliances, ITE (Commercial), and medical equipment. Its dimensions are 76.2mm x 50.8mm x 31.0mm. The part is compliant with standards such as 60335-1, 60601-1, and 62368-1.
-40°C to 85°C with derating.
Chassis Mount.
It has a single output.
95%.
IEC/EN/UL 62368-1, 60601-1, and 60335-1.
76.2mm x 50.8mm x 31.0mm.
27V.
