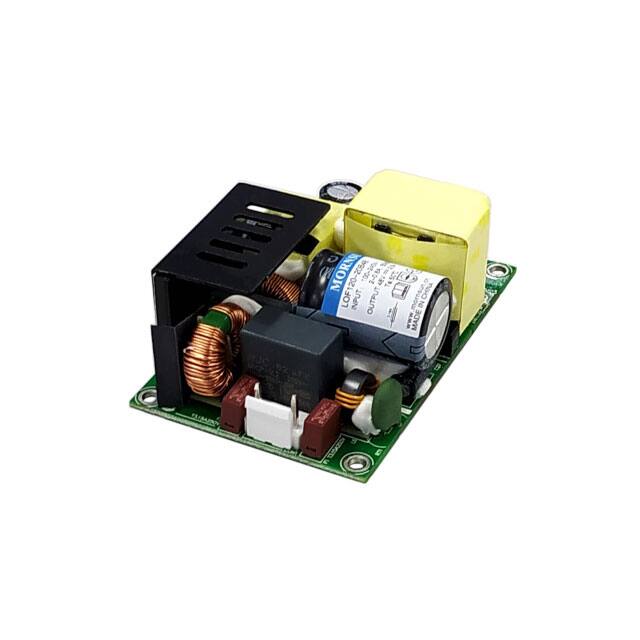

The Mornsun LOF120-20B24 is an open frame AC/DC power supply designed for various applications. It provides a 24Vdc output voltage with a maximum current of 5A, delivering a total power of 120W. The unit accepts a wide input voltage range of 85~264Vac, making it suitable for global use.
Key electrical specifications include an efficiency of 95% and an isolation voltage of 4kV. The power supply is designed for chassis mounting and operates within a temperature range of -40°C to +85°C, with derating. Its dimensions are 76.2mm x 50.8mm x 31.0mm.
This converter is certified for industrial and medical applications, meeting standards such as IEC/EN 60601-1, IEC/EN 62368-1, and UL 62368-1. It is suitable for ITE (Commercial) and Household Appliances. Features include adjustable output, PFC, and a standby output.
85~264Vac.
24Vdc at 5A.
120W.
-40°C to +85°C.
Chassis mount.
95%.
76.2mm x 50.8mm x 31.0mm.
