| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

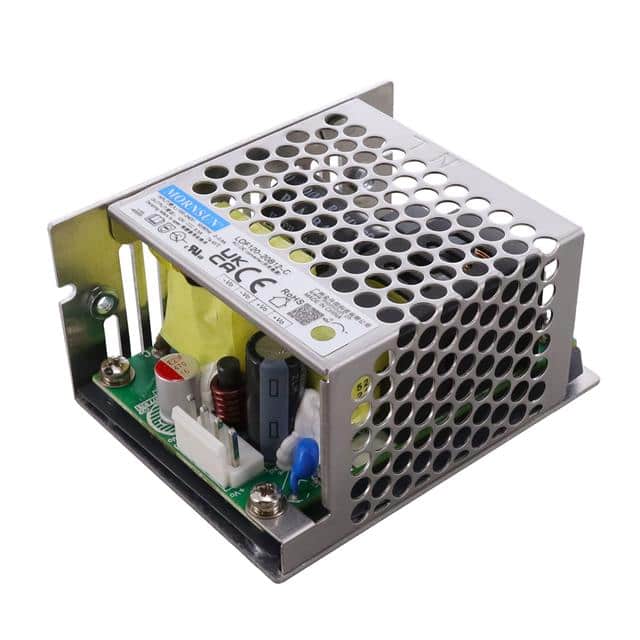

The LOF120-20B12-C from Morning Star Industrial is an enclosed switching power supply designed for versatile applications. It provides a stable 12VDC output at 9.5A, delivering a total of 114W of power.
This power supply features a wide input voltage range, accepting 85-264VAC or 120-370VDC, making it suitable for global use. It boasts an impressive efficiency of 94% and includes Power Factor Correction (PFC) for optimized energy consumption. The unit is designed for chassis mounting and operates within a temperature range of -40°C to 85°C with derating.
Key specifications include an isolation voltage of 4000VAC and compliance with standards such as 60335-1, 60601-1, and 62368-1. Its compact dimensions of 80.0mm x 62.0mm x 40.0mm make it suitable for integration into various systems. The LOF120-20B12-C is suitable for applications in household appliances, ITE (Commercial), and medical equipment.
The output voltage is 12 VDC.
The maximum output current is 9.5 A.
The power rating is 114W.
The input voltage range is 85 - 264 VAC or 120 - 370 VDC.
The efficiency is 94%.
The operating temperature range is -40°C to 85°C (With Derating).
The dimensions are 80.0mm (Length) x 62.0mm (Width) x 40.0mm (Height).
