| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Industrial Grade | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Output Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

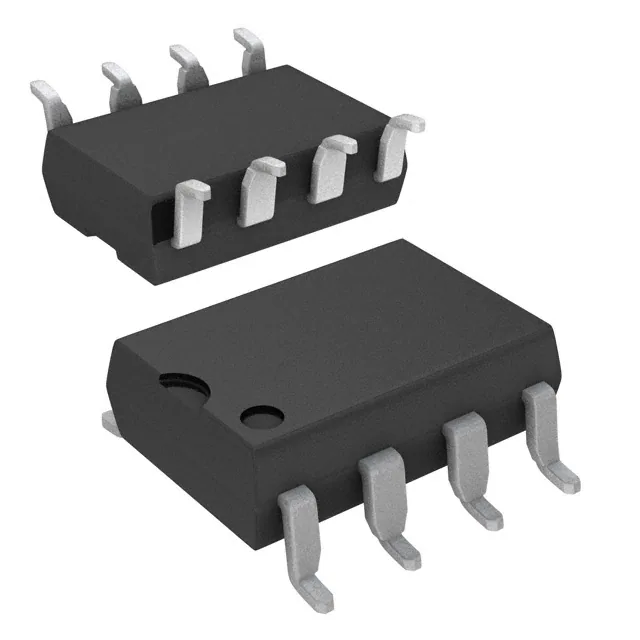

The IXYS LOC111P is a single-channel optoisolator featuring a photovoltaic, linearized output. It offers a high isolation voltage of 3750Vrms, making it suitable for applications requiring electrical isolation between circuits.
Key electrical specifications include a maximum DC forward current of 100 mA and current transfer ratios ranging from a minimum of 0.73% to a maximum of 1.07% at 2mA to 10mA. The input type is DC.
This component is designed for surface mounting and comes in an 8-SMD, Gull Wing package, identified by the supplier device package code 8-Flatpack. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LOC111P provides 3750Vrms of isolation voltage.
The LOC111P features a photovoltaic, linearized output.
The maximum DC forward current for the LOC111P is 100 mA.
The LOC111P has 1 channel.
The minimum current transfer ratio is 0.73% at 2mA ~ 10mA.
The maximum current transfer ratio is 1.07% at 2mA ~ 10mA.
The LOC111P requires a surface mount type.
The LOC111P is supplied in an 8-Flatpack package, with a package/case of 8-SMD, Gull Wing.
The LOC111P is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LOC111P is 1 Unlimited.
The LOC111P is REACH Unaffected.
