| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

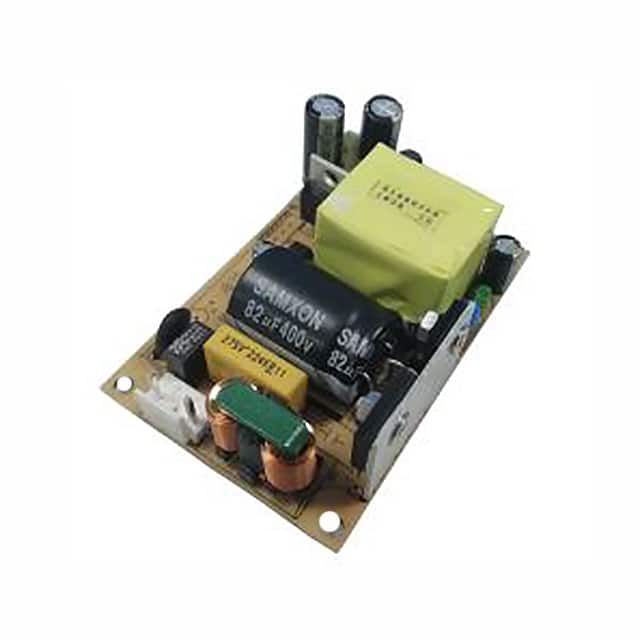

The Morning Star Industrial LO65-10B15 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 65W and features a universal input.
Key electrical specifications include an output current of 4.34A and an isolation voltage of 3kV. The converter operates within a temperature range of -25°C to 70°C with derating. It meets the standard number 62368-1.
Mechanically, this unit is designed for chassis mounting and has dimensions of 76.2mm x 50.8mm x 30.0mm. Its efficiency is rated at 85%.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The approval agencies include CB, CE, and cURus.
The output voltage is 15V DC with a maximum power of 65W (4.34A).
Efficiency is rated at 85%.
-25°C to 70°C with derating.
Isolation voltage is 3 kV.
Chassis mount.
It is approved to CB, CE, and cURus standards.
Dimensions: 76.2 mm x 50.8 mm x 30.0 mm.
