| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

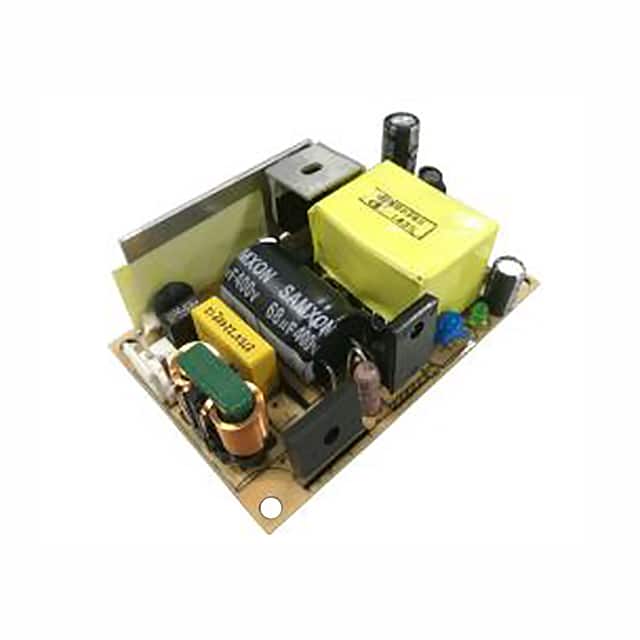

This AC/DC converter from Morning Star Industrial, part number LO45-10B09, is designed for ITE (Commercial) applications. It features an open frame construction and chassis mounting for easy integration into systems.
The converter provides 40W of power with an output current of 4.44A. Key electrical specifications include universal input capability and an isolation voltage of 3kV. It operates efficiently with an efficiency rating of 84% and complies with standard number 62368-1.
Mechanical dimensions are 76.2mm in length, 50.8mm in width, and 30.0mm in height. The operating temperature range is -25°C to 70°C with derating. The device is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
This converter is suitable for various commercial applications requiring a reliable power supply solution.
-25°C to 70°C with derating.
Open frame chassis mount package measuring 76.2mm x 50.8mm x 30.0mm.
9V at 4.44A, providing 40W of power.
84% typical efficiency.
CB, CE, cURus approvals for safety standard 62368-1.
3 kV isolation between input and output.
Chassis mount.
