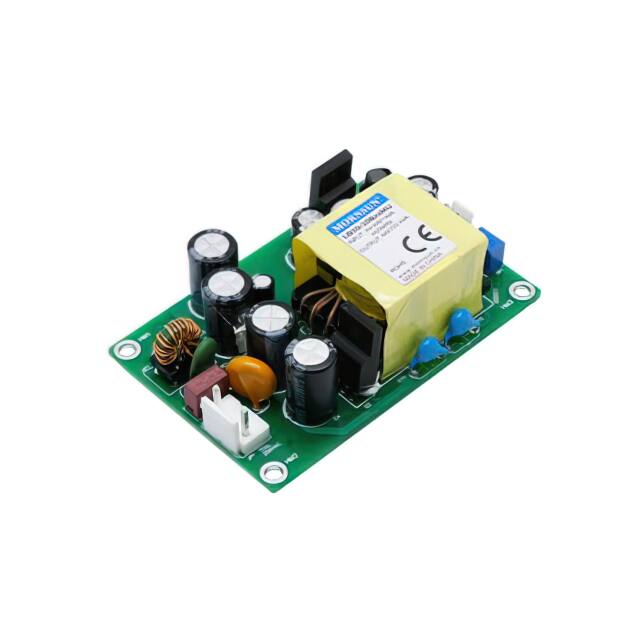

The MORNSUN LO30-20B03MU is an open-frame AC DC converter designed for various applications including household appliances, ITE (Commercial), and medical devices. It provides a 20W output power with a single 3.3V output and a maximum current of 6A.
This converter operates with a wide input voltage range of 80-264 VAC or 100-370 VDC, offering universal input capabilities. It boasts an efficiency of 82% and an isolation voltage of 4 kV. The operating temperature range is from -30°C to 85°C, with derating.
Mechanically, the LO30-20B03MU has dimensions of 76.2mm x 50.8mm x 26.5mm. It is designed for chassis mounting and comes in a bracket mount package. The series is identified as LO30-20BxxMU (30W).
The output voltage is 3.3V.
The maximum output current is 6A.
The power rating is 20W.
The input voltage range is 80-264 VAC or 100-370 VDC.
The operating temperature range is -30°C to 85°C (With Derating).
It is chassis mounted.
