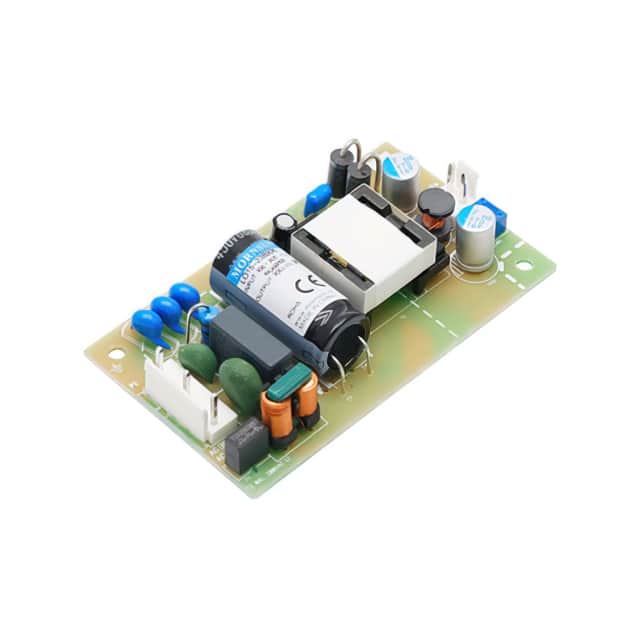

The LO15-23B03E from Mornsun is a specialized AC/DC converter designed for smart grid applications, meeting stringent power industry standards. It offers an ultra-wide input voltage range of 85-305 VAC and 88-430 VDC, making it versatile for various power sources.
This converter boasts an ultra-thin profile with a height less than 22mm and a chassis mount type. Key electrical specifications include a nominal output power of 9.9W, a nominal output voltage of 3.3V with a 3000mA current rating, and an adjustable output voltage range. It operates efficiently with 71% typical efficiency at 230 VAC.
The LO15-23B03E is built for reliability, featuring high isolation, low output ripple and noise, and protection against short circuits and over-voltage. Its wide operating ambient temperature range of -40°C to +85°C ensures performance in demanding environments. EMI performance meets CISPR32/EN55032 Class B standards, and it meets impulse voltage requirements of 1.2/50us 5KV.
Safety certifications include EN62368-1 and BSEN62368-1, with approval agencies CE, EN, and UKCA listed. This converter is suitable for applications requiring high reliability, such as smart power transmission, substations, and microcomputer protection equipment.
The input voltage range is 85-305 VAC (47-440 Hz) or 88-430 VDC.
The output voltage is 3.3 VDC and the output current is 3000 mA (3 A), providing 9.9 W of power.
The operating temperature range is -40°C to 85°C with derating.
It includes short circuit protection (hiccup, continuous, self-recovery), over-voltage protection (≤5.25V for 3.3V output), and over-current protection (≥120% Io, self-recovery).
The dimensions are 87.5 mm (length) x 50 mm (width) x 22 mm (height).
The typical efficiency is 71% at 230 VAC.
The maximum ripple and noise is 120 mV peak-to-peak at 100 MHz bandwidth.
