| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

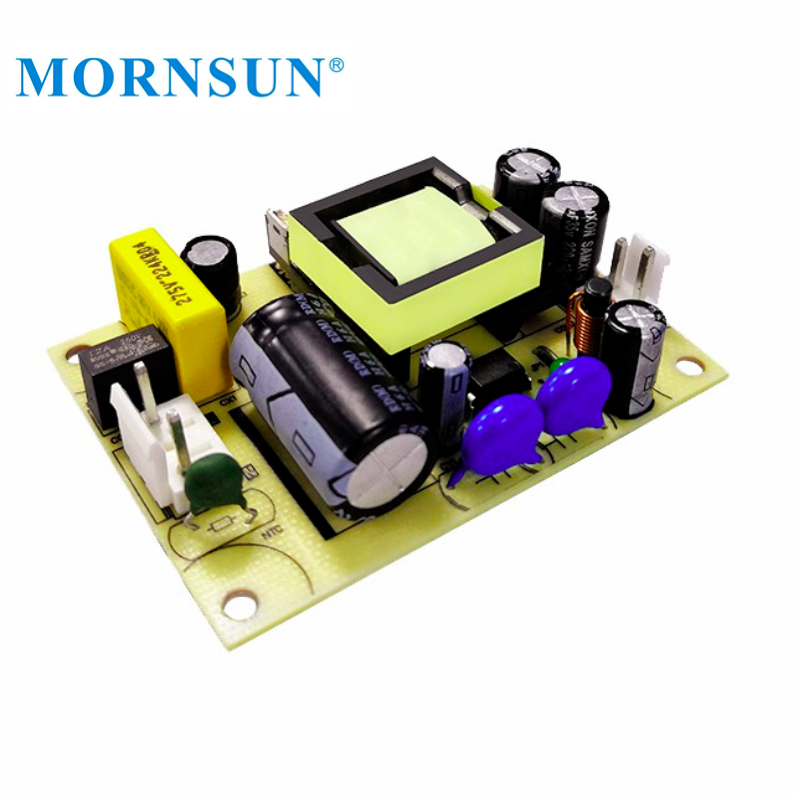

The Morning Star Industrial LO15-10B24 is an open frame AC/DC converter with a power rating of 15W. It operates with a universal input and provides a constant voltage output. The converter is designed for chassis mounting and features a compact size with dimensions of 63.5mm x 45.7mm x 19.0mm.
Key electrical specifications include an output current of 625 mA and an isolation voltage of 3 kV. The efficiency is rated at 82%. The operating temperature range is -25°C to 70°C with derating. This model is compliant with safety standard 62368-1 and approved by CB, CE, and cURus agencies.
Designed for ITE (Commercial) applications, the LO15-10B24 offers universal input capability, making it suitable for various power environments. Its open frame construction and chassis mount type facilitate integration into system designs.
625 mA
15W
82%
3 kV
CB, CE, cURus
62368-1
-25°C to 70°C (with derating)
