| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,000 pcs
|
48000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Dimensions | |
| Dominant Wavelength | |
| Forward Current | |
| Forward Voltage | |
| Height (Max) | |
| Illumination Color | |
| LED Size | |
| Lens Size | |
| Lens Style | |
| Luminous Intensity | |
| Maximum Operating Temperature | |
| Millicandela Rating | |
| Minimum Operating Temperature | |
| Mounting Type | |
| Peak Wavelength | |
| Supplier Device Package | |
| Voltage | |
| Wavelength |

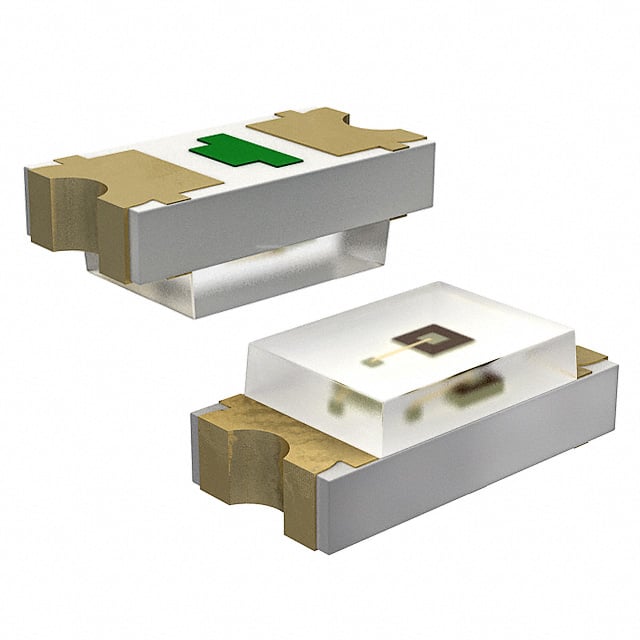

This blue SMD LED from Panasonic Electronic Components, part number LNJ947W8CRA, is designed for discrete indication applications. It features a compact 0402 (1005 Metric) package with a surface mount type, making it suitable for space-constrained designs.
The LED emits blue light with a peak wavelength of 465nm and a dominant wavelength of 472nm. It operates at a typical forward voltage of 2.9V and a forward current of 5mA, delivering a luminous intensity of 18mcd. The dimensions of the LED are 1.00mm in length and 0.50mm in width, with a maximum height of 0.25mm.
It is rated for an operating temperature range of -30°C to +85°C. The lens style is a rectangle with a flat top, measuring 0.70mm x 0.50mm. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.9V at 5mA.
The luminous intensity is 18mcd at a test current of 5mA.
The peak wavelength is 465nm.
The operating temperature range is from -30°C to +85°C.
It is a 0402 (1005 Metric) package with a surface mount type.
