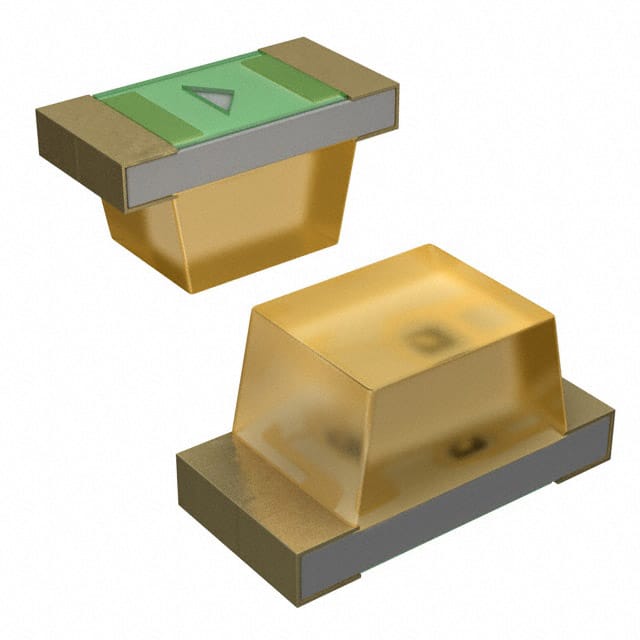

LNJ808R8ERA The Panasonic LNJ808R8ERA is an orange, surface mount chip LED with a standard configuration. It features a 1.1mcd luminous intensity and a 630nm peak emission wavelength.
Mfr Part #:

LNJ808R8ERA

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic LNJ808R8ERA is an orange, surface mount chip LED with a standard configuration. It features a 1.1mcd luminous intensity and a 630nm peak emission wavelength.
✓ Total Stock: 1,500 pcs
$ Price Range: $0.08

LNJ808R8ERA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LNJ808R8ERA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Forward Current
Forward Voltage
Height (Max)
Lens Size
Lens Style
Millicandela Rating
Mounting Type
Power Dissipation
Reverse Current
Reverse Voltage
Storage Temperature
Voltage
Wavelength
View Similar Products (0)

LNJ808R8ERA Description

Short technical summary and product information.

This Orange Surface Mounting Chip LED from Panasonic Electronic Components, part number LNJ808R8ERA, is designed for discrete LED indication applications. It features a compact 0603 (1608 Metric) package suitable for surface mounting.



The LED operates with a typical forward current of 5mA and a forward voltage of 1.8V. It provides a luminous intensity of 0.4 to 1.1 mcd at 5mA, with a peak emission wavelength of 630nm and a spectral half bandwidth of 40nm.



Absolute maximum ratings include a power dissipation of 30mW, a maximum forward current of 10mA, and a reverse voltage of 3V. The operating ambient temperature range is -25°C to +85°C, with a storage temperature range of -40°C to +100°C.



The component is specified with RoHS3 compliance and an MSL rating of 1. Its dimensions are 1.60mm L x 0.80mm W, with a maximum height of 0.90mm. The lens style is a rectangle with a flat top, measuring 0.90mm x 0.80mm.

LNJ808R8ERA Quick Information

Product Type: LED
Canonical Name: Orange Surface Mount Chip LED
Subcategory: Discrete LED

LNJ808R8ERA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LNJ808R8ERA Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LNJ808R8ERA Features

  • Orange color surface mount chip LED.
  • 0603 (1608 Metric) package size.
  • 1.1mcd typical luminous intensity.
  • 630nm peak emission wavelength.
  • RoHS3 compliant.

LNJ808R8ERA Applications

  • Ideal for status indication.
  • Suitable for compact designs.
  • Used in electronic devices.
  • General purpose lighting.

LNJ808R8ERA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the LNJ808R8ERA LED?

The typical forward voltage for the LNJ808R8ERA LED is 1.8V.

What package type is the LNJ808R8ERA LED?

The LNJ808R8ERA LED is a Surface Mount device in a 0603 (1608 Metric) package.

What is the luminous intensity of the LNJ808R8ERA LED?

The luminous intensity of the LNJ808R8ERA LED is between 0.4 and 1.1 mcd at 5mA.

What is the peak emission wavelength for this orange LED?

The peak emission wavelength for the LNJ808R8ERA LED is 630nm.

What is the operating temperature range for the LNJ808R8ERA LED?

The operating ambient temperature range for the LNJ808R8ERA LED is -25°C to +85°C.
