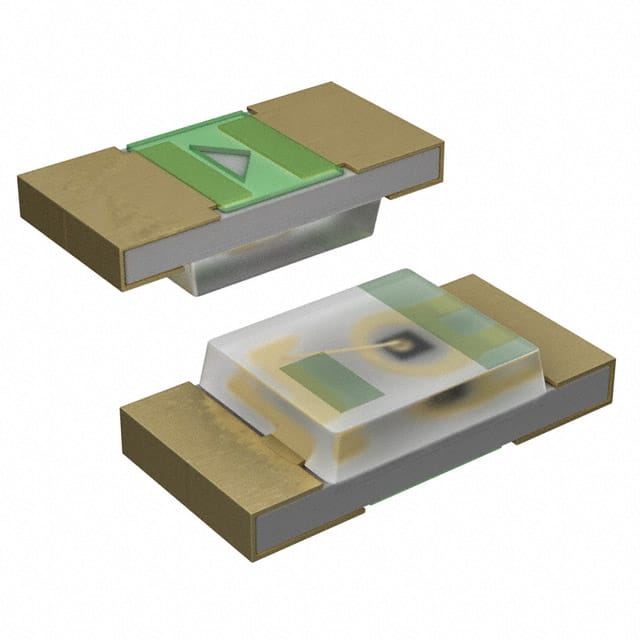

LNJ326W83RA The Panasonic Electronic Components LNJ326W83RA is a green chip LED designed for surface mounting. It operates at 2.05V and 10mA, with a luminous intensity of 17mcd.
Mfr Part #:

LNJ326W83RA

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components LNJ326W83RA is a green chip LED designed for surface mounting. It operates at 2.05V and 10mA, with a luminous intensity of 17mcd.
✓ Total Stock: 20,020 pcs
$ Price Range: $0.08

LNJ326W83RA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request 10+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LNJ326W83RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Size
Lens Style
Millicandela Rating
Mounting Type
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

LNJ326W83RA Description

Short technical summary and product information.

This Panasonic Electronic Components LNJ326W83RA is a green chip LED suitable for surface mount applications. It comes in a compact 0603 (1608 Metric) package, measuring 1.60mm L x 0.80mm W with a maximum height of 0.42mm. The LED features a rectangle lens style with a flat top, measuring 1.10mm x 0.80mm.



Electrically, the LNJ326W83RA operates with a typical forward voltage of 2.05V and a typical forward current of 10mA. It emits green light with a peak wavelength of 575nm and a typical luminous intensity of 17mcd. This component is designed for standard configurations.



Its RoHS3 compliant status and MSL 1 rating make it suitable for various manufacturing processes. The surface mount design and small footprint are ideal for space-constrained electronic assemblies.

LNJ326W83RA Quick Information

Product Type: LED
Canonical Name: Panasonic Electronic Components LNJ326W83RA Green SMD LED
Subcategory: Chip LED

LNJ326W83RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LNJ326W83RA Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LNJ326W83RA Features

  • Green SMD LED in 0603 package.
  • Typical forward voltage is 2.05V.
  • Typical forward current is 10mA.
  • Luminous intensity is 17mcd.
  • RoHS3 compliant status.

LNJ326W83RA Applications

  • Suitable for surface mount assembly.
  • Ideal for compact electronic devices.
  • Used for status indication.
  • General purpose lighting applications.

LNJ326W83RA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the LNJ326W83RA LED?

The typical forward voltage for the LNJ326W83RA LED is 2.05V.

What is the package type for the LNJ326W83RA LED?

The LNJ326W83RA LED is supplied in a 0603 (1608 Metric) package.

What is the RoHS status of the LNJ326W83RA LED?

The LNJ326W83RA LED is RoHS3 Compliant.

What is the luminous intensity of the LNJ326W83RA LED?

The LNJ326W83RA LED has a typical luminous intensity of 17mcd.

What is the color of the LNJ326W83RA LED?

The LNJ326W83RA LED is green.
