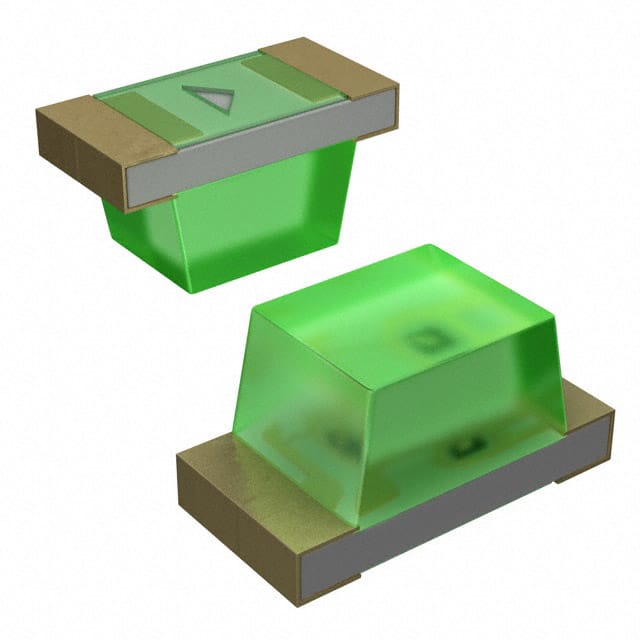

LNJ308G8LRA The Panasonic LNJ308G8LRA is a green, diffused surface mount LED in a 0603 package. It operates with a typical forward current of 5mA and a forward voltage of 1.9V.
Mfr Part #:

LNJ308G8LRA

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic LNJ308G8LRA is a green, diffused surface mount LED in a 0603 package. It operates with a typical forward current of 5mA and a forward voltage of 1.9V.
✓ Total Stock: 30 pcs
$ Price Range: $0.08

LNJ308G8LRA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LNJ308G8LRA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Voltage
Wavelength
View Similar Products (0)

LNJ308G8LRA Description

Short technical summary and product information.

This Panasonic LNJ308G8LRA is a surface mount LED designed for indication purposes. It features a green, diffused lens and emits light with a typical luminous intensity of 3mcd at a wavelength of 565nm. The LED is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a maximum height of 0.80mm.



Electrical characteristics include a typical forward current of 5mA and a typical forward voltage of 1.9V. The absolute maximum forward current is rated at 10mA, with a peak pulse forward current of 50mA. The reverse voltage rating is 4V. The operating temperature range for this component is -30°C to +85°C.



This component is suitable for various electronic applications requiring visual indication. Its small footprint makes it ideal for space-constrained designs. The diffused lens ensures a wide viewing angle for the emitted green light.

LNJ308G8LRA Quick Information

Product Type: LED
Canonical Name: Panasonic Electronic Components LNJ308G8LRA Green Diffused Surface Mount Chip LED
Subcategory: Discrete LED

LNJ308G8LRA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LNJ308G8LRA Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LNJ308G8LRA Features

  • Green diffused surface mount LED.
  • Compact 0603 (1608 Metric) package.
  • Typical 5mA forward current.
  • Typical 1.9V forward voltage.
  • 565nm wavelength green light.

LNJ308G8LRA Applications

  • Ideal for status indication.
  • Suitable for compact devices.
  • Used in electronic assemblies.
  • General purpose visual signaling.

LNJ308G8LRA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical forward current for the LNJ308G8LRA LED?

The typical forward current for the LNJ308G8LRA LED is 5mA.

What is the typical forward voltage of the LNJ308G8LRA LED?

The typical forward voltage of the LNJ308G8LRA LED is 1.9V.

What is the luminous intensity of the LNJ308G8LRA LED?

The typical luminous intensity of the LNJ308G8LRA LED is 3mcd.

What is the wavelength of the LNJ308G8LRA LED?

The wavelength of the LNJ308G8LRA LED is 565nm.

What are the dimensions of the LNJ308G8LRA LED?

The LNJ308G8LRA LED measures 1.60mm L x 0.80mm W, with a height of 0.80mm.

What is the operating temperature range for the LNJ308G8LRA LED?

The operating temperature range for the LNJ308G8LRA LED is -30°C to +85°C.
