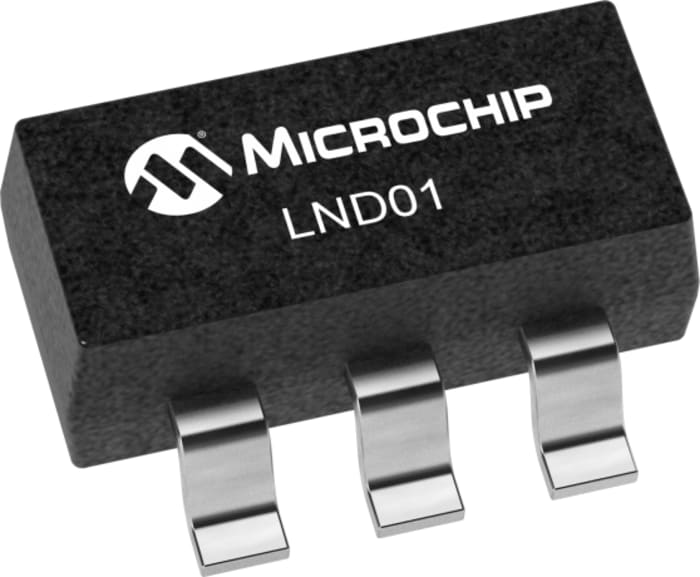

LND01K1-G The Microchip LND01K1-G is an N-Channel DMOS FET-Channel Single MOSFET. It operates in depletion mode and is housed in a 5-pin SOT-23-5 package.
Mfr Part #:

LND01K1-G

Available from 1 distributors
Mfr Name: MICROCHPHS
MICROCHPHS
The Microchip LND01K1-G is an N-Channel DMOS FET-Channel Single MOSFET. It operates in depletion mode and is housed in a 5-pin SOT-23-5 package.
✓ Total Stock: 4,600 pcs

LND01K1-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,600 pcs
On Request
4600 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LND01K1-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Height
Length
View Similar Products (0)

LND01K1-G Description

Short technical summary and product information.

The Microchip LND01K1-G is a single N-Channel DMOS FET-Channel MOSFET designed for various electronic applications. This device features a maximum continuous drain current of 350mA and a maximum drain-source voltage of 9V.



Operating in depletion mode, the LND01K1-G offers specific characteristics suitable for switching and amplification circuits. Its surface-mount SOT-23-5 package ensures ease of integration into compact designs. The MOSFET has a maximum power dissipation of 360mW and operates across a temperature range of -25°C to 125°C.



Key electrical specifications include a maximum drain-source resistance of 1.4Ω and a forward voltage of 1.8V. The component's dimensions are 3.05mm in length and 1.3mm in height, making it suitable for space-constrained PCB layouts.

LND01K1-G Quick Information

Product Type: MOSFET
Series: LND01
Canonical Name: Microchip LND01K1-G N-Channel DMOS FET-Channel Single MOSFET
Subcategory: Single MOSFET

LND01K1-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LND01K1-G Features

  • N-Channel DMOS FET-Channel Single MOSFET
  • 9V maximum drain-source voltage
  • 350mA maximum continuous drain current
  • Depletion mode operation
  • 5-pin SOT-23-5 surface mount package

LND01K1-G Applications

  • Low-power load switching applications
  • Battery-powered device power management
  • Signal switching in portable electronics
  • Depletion-mode current regulation circuits
  • Surface-mount automotive control modules

LND01K1-G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum continuous drain current for the LND01K1-G?

The maximum continuous drain current is 350mA.

What is the maximum drain-source voltage of the LND01K1-G MOSFET?

The maximum drain-source voltage is 9V.

What type of channel mode does the LND01K1-G operate in?

The LND01K1-G operates in depletion mode.

What is the package type for the Microchip LND01K1-G?

The package type is SOT-23-5.

What is the operating temperature range for this MOSFET?

The operating temperature range is from -25°C to 125°C.
