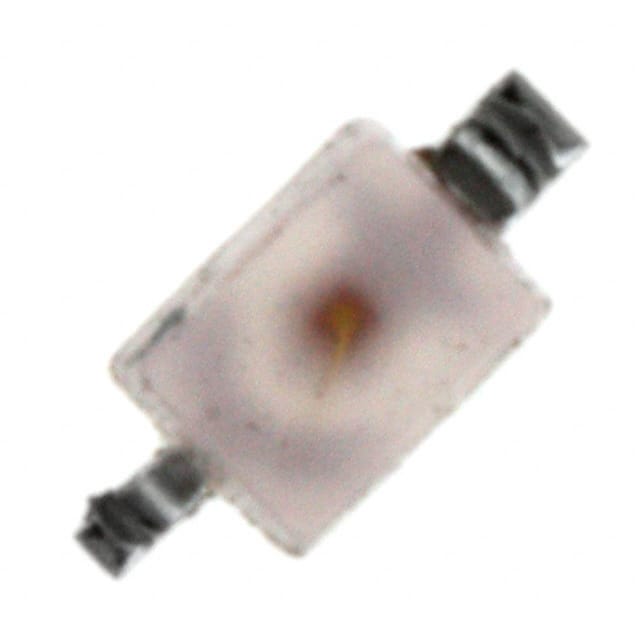

LN1271RTR The Panasonic LN1271RTR is a red diffused LED in an S-GW type package. It features a surface mount design and operates at 2.03V with a 10mA current rating.
Mfr Part #:

LN1271RTR

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic LN1271RTR is a red diffused LED in an S-GW type package. It features a surface mount design and operates at 2.03V with a 10mA current rating.
✓ Total Stock: 200 pcs
$ Price Range: $0.08

LN1271RTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
DYNACO PRODUCTS ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LN1271RTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Voltage
Wavelength
View Similar Products (0)

LN1271RTR Description

Short technical summary and product information.

The Panasonic LN1271RTR is a discrete red LED designed for surface mount applications. It features a diffused lens for even light distribution and a flat top style. The LED operates at a typical forward voltage of 2.03V and a current rating of 10mA, producing a luminous intensity of 0.4mcd. Its compact size of 1.70mm L x 1.25mm W and a maximum height of 1.10mm make it suitable for space-constrained designs. The S-GW type LED package is designed for surface mounting with gull wing leads.



This component is specified with a wavelength of 700nm. It is classified under RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. The REACH status is unaffected.



Key specifications include its red color, diffused lens transparency, and a typical luminous intensity of 0.4mcd. The package is a 2-SMD Gull Wing type, suitable for automated assembly processes.

LN1271RTR Quick Information

Product Type: LED
Canonical Name: LN1271RTR Red Diffused S-GW Type LED
Subcategory: Discrete

LN1271RTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LN1271RTR Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LN1271RTR Features

  • Red diffused LED in S-GW package
  • Surface mountable with gull wing leads
  • 2.03V typical forward voltage
  • 10mA typical current rating
  • 0.4mcd typical luminous intensity

LN1271RTR Applications

  • Used in indicator light assemblies
  • Suitable for small electronic devices
  • Ideal for status signaling panels
  • Component in portable electronics

LN1271RTR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage of the LN1271RTR LED?

The typical forward voltage is 2.03V.

What is the luminous intensity of the LN1271RTR LED?

The typical luminous intensity is 0.4mcd.

What type of package is the LN1271RTR LED?

The LN1271RTR LED is in a 2-SMD, Gull Wing package.

What is the RoHS status of the LN1271RTR LED?

The LN1271RTR LED is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the LN1271RTR LED?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
