| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-04-21 07:15:10 |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Diameter | |
| Forward Current | |
| Height (Max) | |
| Lens Diameter | |
| Lens Size | |
| Lens Style | |
| Millicandela Rating | |
| Mounting Type | |
| Power Dissipation | |
| Storage Temperature | |
| Supplier Device Package | |
| Voltage | |
| Wavelength |

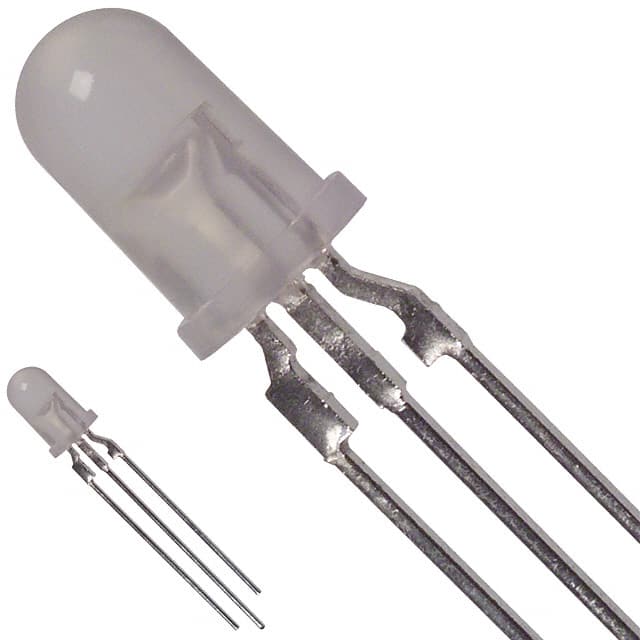

The Panasonic LN11WP38 is a bi-color Light Emitting Diode (LED) capable of emitting both Green and Orange light. It features a 5mm round lens and is designed for through-hole mounting.
This LED operates with a maximum forward current of 30mA and a typical forward voltage of 2.2V for Green and 2.1V for Orange at 20mA. The luminous intensity is rated at 15mcd for both colors under typical conditions. The peak emission wavelengths are 565nm for Green and 630nm for Orange, with spectral half bandwidths of 30nm and 40nm, respectively.
Absolute maximum ratings include a power dissipation of 90mW and an operating ambient temperature range of -25°C to +85°C. Storage temperature ranges from -30°C to +100°C. The component is packaged in a Radial - 3 Leads configuration.
This product complies with RoHS3 standards and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LN11WP38 LED emits both Green and Orange light.
The typical forward voltage is 2.2V for Green and 2.1V for Orange when the current is 20mA.
The luminous intensity is typically 15mcd for both Green and Orange light at 20mA.
The operating ambient temperature range is -25°C to +85°C.
The LN11WP38 LED is mounted using the Through Hole method.
