The LMZM33606RLXR is a non-isolated point-of-load (PoL) module from Texas Instruments, designed to deliver up to 6A of continuous output current. It supports a wide input voltage range of 3.5V to 36V and an adjustable output voltage from 1V to 20V, making it suitable for 5V, 12V, 24V, and 28V rail applications. The module utilizes a synchronous buck or inverting buck-boost topology with current mode control for stable regulation.
With a switching frequency range of 350kHz to 2.2MHz, the LMZM33606RLXR offers design flexibility and can be synchronized to an external clock. Its efficiency reaches up to 91% at full load. The device includes features such as enable, frequency synchronization, power good, tracking, adjustable soft start, and light load efficiency mode. Protection features include overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO).

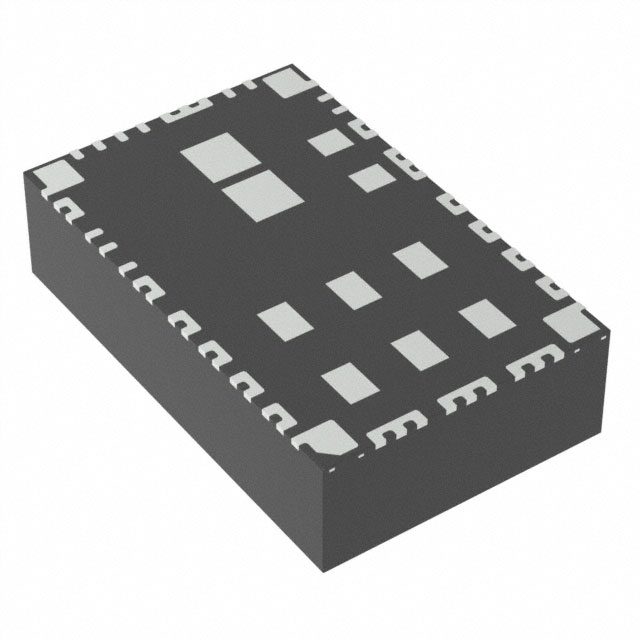

The module is housed in a 41-pin PowerBQFN package (41-B2QFN, 16x10mm) with a low profile of 4.1mm, suitable for surface mount assembly. It operates over an industrial temperature range of -40°C to 105°C. The LMZM33606RLXR is pin compatible with the 4A LMZM33604 and is designed for commercial ITE applications. It meets EN55011 radiated emissions standards and requires minimal external components.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.14 | $19.14 |
| 10+ | $15.25 | $15.25 |
| 25+ | $14.27 | $14.27 |
| 100+ | $13.30 | $13.30 |
| 250+ | $12.99 | $12.99 |
| 500+ | $12.37 | $12.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.5V to 36V.
1V to 20V.
6A.
-40°C to 105°C.
41-B2QFN (16x10mm) surface mount package.
Yes, RoHS3 Compliant (unverified).
Current mode control.
