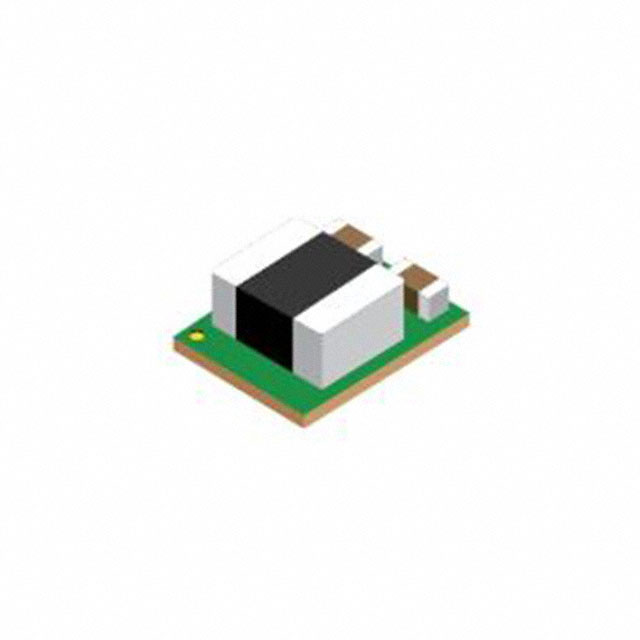

The LMZM23600SILT is a non-isolated step-down DC/DC power module from Texas Instruments. It operates from a 4V to 36V input and provides an adjustable output from 1.2V to 15V with up to 0.5A of output current. The module integrates the inductor and simplifies design by requiring only input and output capacitors for fixed 5V or 3.3V outputs.
Key features include a wide input voltage range, current mode control, switching frequency from 675kHz to 1090kHz, and a maximum duty cycle of 97%. Protection features include overcurrent protection (OCP), short-circuit protection (SCP), and undervoltage lockout (UVLO). The module also offers enable, power good, frequency synchronization, and light load efficiency modes.
The device is housed in a compact 10-uSIP package measuring 3.8mm x 3.0mm x 1.6mm, suitable for surface mount assembly. It is rated for commercial ITE applications and operates over a temperature range of -40°C to 125°C. The module is RoHS3 compliant and has an MSL of Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.91 | $5.91 |
| 5+ | $5.78 | $5.78 |
| 10+ | $5.18 | $5.18 |
| 25+ | $4.88 | $4.88 |
| 50+ | $4.84 | $4.84 |
| 100+ | $4.55 | $4.55 |
| 250+ | $4.33 | $4.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4V to 36V.
10-uSIP (3.8mm x 3mm) surface mount package.
-40°C to 125°C.
Yes, it is RoHS3 compliant (unverified).
0.5A.
675kHz to 1090kHz.
Overcurrent protection (OCP), short-circuit protection (SCP), and undervoltage lockout (UVLO).
