| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,616 pcs
|
3616 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,570 pcs
|
1570 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width | |
| msl_level |

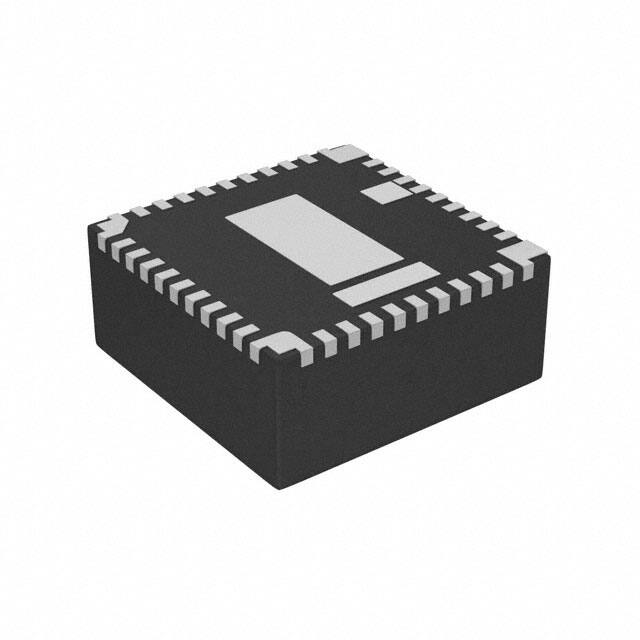

The Texas Instruments LMZ36002RVQT is a Non-Isolated Point-of-Load (PoL) DC-DC converter module designed for commercial ITE applications. It delivers a single output with a maximum current of 2A and achieves up to 95% efficiency, minimizing power loss in space-constrained designs.
The module operates from a minimum input voltage of 4.5V and includes built-in protection features such as Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO). Control is managed via an Enable pin with Active High logic.
Packaged in a 43-BQFN module (10.2mm x 10.2mm x 4.4mm), the LMZ36002RVQT supports surface-mount assembly and is specified for an operating temperature range of -40°C to 105°C. The supplier device package is 43-B3QFN (10x10).
| Qty | Low | High |
|---|---|---|
| 1+ | $15.66 | $15.66 |
| 10+ | $11.65 | $11.65 |
| 25+ | $11.18 | $11.18 |
| 100+ | $10.15 | $10.15 |
| 250+ | $8.28 | $8.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 2 A.
The typical efficiency is 95%.
The operating temperature range is -40°C to 105°C.
It comes in a 43-BQFN Module package, with a supplier device package of 43-B3QFN (10x10).
The RoHS status is listed as RoHS3 Compliant, but this value is unverified.
