| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,166 pcs
|
5166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,602 pcs
|
1602 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Output) | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |
The LMZ31707RVQT is a Non-Isolated Point-of-Load (PoL) module from Texas Instruments, designed for high-efficiency power conversion. It provides a single output of up to 7A with an adjustable voltage range from 0.6V to 5.5V, delivering a maximum power of 39W. The module achieves efficiency up to 95%, reducing thermal management requirements.
The device integrates protection features including Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Under-Voltage Lockout (UVLO). It supports an enable control input that is active high. The operating temperature range is -40°C to 85°C, suitable for commercial ITE applications.

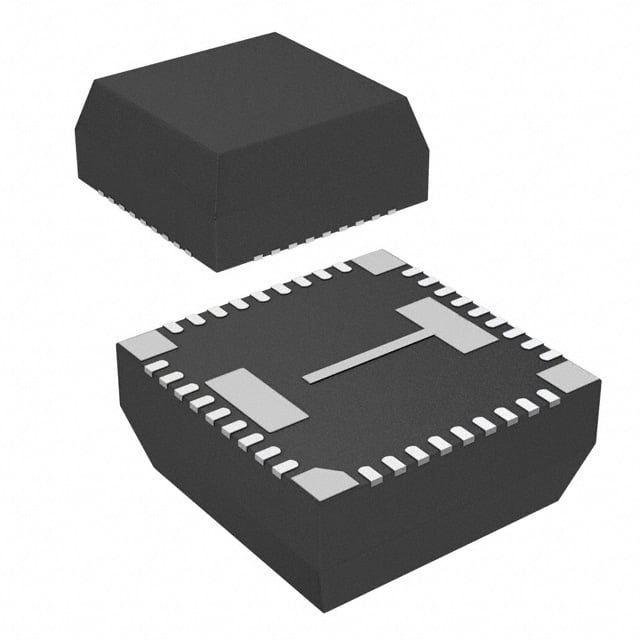

Packaged in a compact 42-BQFN module (10.2mm x 10.2mm x 4.4mm), the LMZ31707RVQT is surface mountable, enabling space-constrained designs. The module is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $16.66 | $16.66 |
| 5+ | $16.04 | $16.04 |
| 10+ | $15.78 | $15.78 |
| 25+ | $15.48 | $15.48 |
| 50+ | $15.19 | $15.19 |
| 100+ | $14.94 | $14.94 |
| 250+ | $14.61 | $14.61 |
| 500+ | $14.38 | $14.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is adjustable from 0.6V to 5.5V.
The maximum output current is 7A.
The module achieves up to 95% efficiency.
It is available in a 42-BQFN module (10.2mm x 10.2mm x 4.4mm).
The operating temperature range is -40°C to 85°C.
It is listed as RoHS3 Compliant, but this is unverified.
It includes Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Under-Voltage Lockout (UVLO).
