| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,923 pcs
|
1923 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Mode | |
| Current | |
| Duty Cycle (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power - Max | |
| Output Voltage Max | |
| Output Voltage Min | |
| Supplier Device Package | |
| Switching Frequency (Max) | |
| Switching Frequency (Min) | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Width |

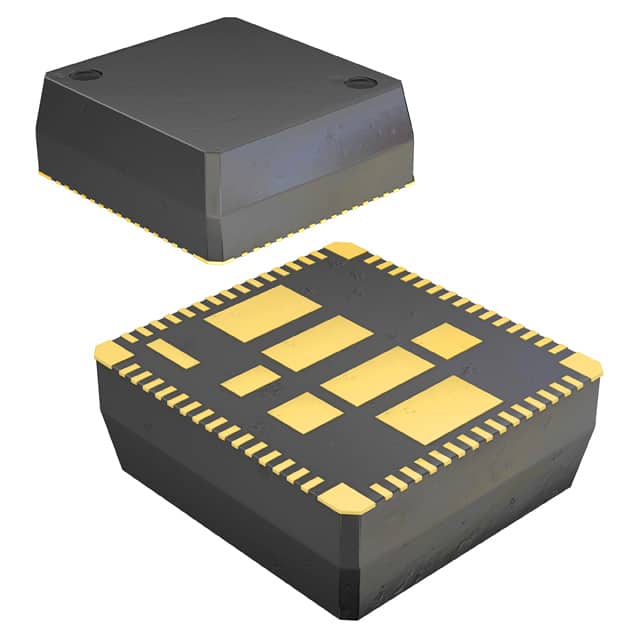

The Texas Instruments LMZ31530RLGT is a non-isolated Point-of-Load (PoL) module featuring a synchronous buck topology. It delivers up to 30A output current with a typical efficiency of 96%. The input voltage range is 3V to 14.5V, and the output voltage is adjustable from 0.6V to 3.6V with 1% reference accuracy.
This module integrates a shielded inductor and uses D-CAP control mode for fast transient response. Switching frequency is selectable between 300kHz and 850kHz. Protection features include overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Additional features include remote on/off, enable, power good, remote sense, and light-load efficiency enhancement.
The LMZ31530RLGT is housed in a 72-BQFN package measuring 16.2mm x 15.2mm x 5.9mm and is surface mountable. It is designed for commercial ITE applications and operates over a -40°C to 85°C temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.86 | $30.86 |
| 5+ | $29.72 | $29.72 |
| 10+ | $29.24 | $29.24 |
| 25+ | $28.61 | $28.61 |
| 50+ | $28.15 | $28.15 |
| 100+ | $27.69 | $27.69 |
| 250+ | $27.08 | $27.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 30A.
The input voltage range is 3V to 14.5V.
The output voltage is adjustable from 0.6V to 3.6V.
The operating temperature range is -40°C to 85°C.
It uses a 72-BQFN module package (15x15mm).
RoHS3 compliance is indicated but unverified.
