| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,861 pcs
|
7861 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Control Mode | |
| Current | |
| Duty Cycle (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current Max | |
| Output Voltage Max | |
| Output Voltage Min | |
| Supplier Device Package | |
| Switching Frequency (Max) | |
| Switching Frequency (Min) | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Width |

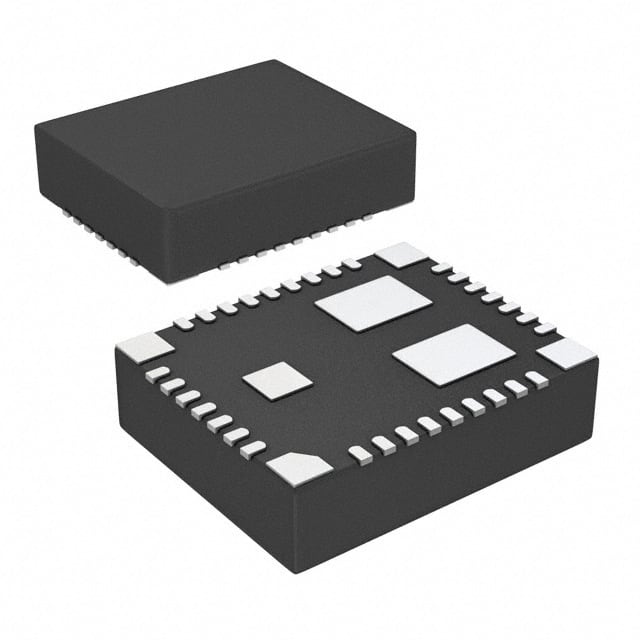

The Texas Instruments LMZ30604RKGT is a non-isolated Point-of-Load (PoL) step-down power module that integrates a synchronous buck converter with an inductor in a compact 39-B1QFN (11x9mm) package. It delivers up to 4A of continuous output current from an input voltage range of 2.95V to 6V. The output voltage is adjustable from 0.8V to 3.6V with ±1% reference accuracy.
This module operates in voltage mode control with a switching frequency adjustable from 400kHz to 2000kHz, and can synchronize to an external clock. It includes protection features such as overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO). The enable control is active high.
Designed for commercial ITE applications, the LMZ30604RKGT operates over a temperature range of -40°C to 85°C. The surface-mount package with exposed pad aids thermal dissipation. Efficiency is typically 95% under unspecified conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.19 | $7.19 |
| 10+ | $7.07 | $7.07 |
| 25+ | $6.81 | $6.81 |
| 100+ | $6.57 | $6.57 |
| 250+ | $6.31 | $6.31 |
| 500+ | $6.17 | $6.17 |
| 1,000+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.95V to 6V.
The maximum output current is 4A.
The output voltage is adjustable from 0.8V to 3.6V.
It comes in a 39-BQFN Exposed Pad package (supplier device package 39-B1QFN 11x9mm).
The operating temperature range is -40°C to 85°C.
It is listed as RoHS3 Compliant, though this is unverified.
