| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,383 pcs
|
1383 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Mode | |
| Current | |
| Duty Cycle (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Integrated Inductor | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature (Ambient) | |
| Output Current Max | |
| Output Voltage Max | |
| Output Voltage Min | |
| Switching Frequency (Minimum/Typical/Maximum) | |
| Topology | |
| Type | |
| Voltage | |
| Width |
The LMZ12008TZ/NOPB is a high-performance 8A Non-Isolated Point-of-Load (PoL) module from Texas Instruments, part of the SIMPLE SWITCHER family. It integrates a synchronous buck converter with an inductor and provides a regulated output voltage adjustable from 0.8V to 6V. The module operates from a 6V to 20V input and delivers up to 8A of output current with typical efficiency of 92%. It features a fixed switching frequency of 350kHz, current mode control, and includes UVLO, enable, tracking, and EMI tested features. The module is housed in a surface-mount TO-PMOD-11 package with dimensions 17.79mm x 15.0mm x 5.9mm, making it suitable for space-constrained applications. The integrated shielded inductor simplifies PCB layout and reduces external component count. The operating ambient temperature range is -40°C to 85°C, with a junction temperature range of -40°C to 125°C. This module is designed for commercial ITE applications and is part of a pin-compatible family with LMZ22010, LMZ22008, and others. It is RoHS3 compliant (unverified) and has MSL 1 (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $24.23 | $24.23 |
| 5+ | $23.33 | $23.33 |
| 10+ | $22.95 | $22.95 |
| 32+ | $22.33 | $22.33 |
| 64+ | $21.97 | $21.97 |
| 128+ | $21.61 | $21.61 |
| 256+ | $21.26 | $21.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 6V to 20V, and the output voltage is adjustable from 0.8V to 6V.

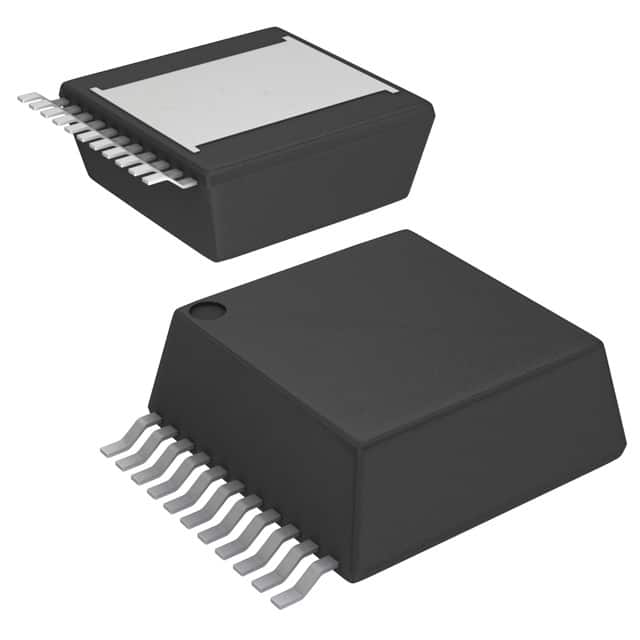

The LMZ12008TZ/NOPB is available in a surface-mount TO-PMOD-11 package.
The operating ambient temperature range is -40°C to 85°C, and the junction temperature range is -40°C to 125°C.
The LMZ12008TZ/NOPB is listed as RoHS3 Compliant, but this status is unverified.
The maximum output current is 8A.
The typical efficiency is 92%.
The fixed switching frequency is typically 350kHz, with a range of 314kHz to 404kHz.
